spur gear

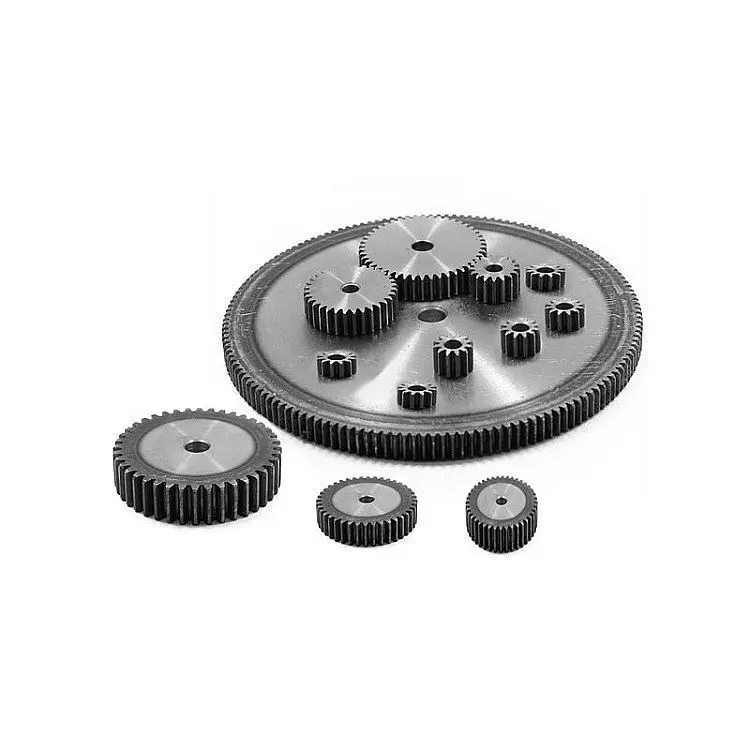

Spur gear transmission relies on the meshing of the driving gear and the driven gear to transmit motion and power. This is a gear that is driven between two parallel shafts. Spur gears are easy to process, can produce high-precision gears, and do not generate thrust during transmission (axial force), is one of the most common gears in actual production and use.
Gear transmission has the advantages of reliable operation, constant transmission ratio, high efficiency, transmission of motion between any two axes in space, and wide adaptability.
| Range of Processing | ||
| Project | Konlida factory processing requirements range | |
| Spur Gear/Spur Gear Set/Double Helical Gear | ||
| Module | M 1-8 | Konlida is mainly engaged in M1-8 module gear and the production of synchronous belt Pulley |
| Teeth | Unlimited | Unlimited |
| Pressure Angle | 20° | The pressure angle generally is 20° |
| Material | S45C etc. | mrtal/plastic/nylon/stainless steel/brass/copper/aluminum/rubber/bakelite |
| Accuracy Level | 5-6 | 5-6 is the standard accuracy level |
| Heat Treatment | scheduling, high frequency, nitriding | (incoming material) according to the requirement to customized processing of gears |
| Type of Gear | Helical Gear/Double Herringbone Gear/Double Helical Gear | |
Gear Type: Spur Gears、custom spur gears
Gears Keywords: Spur Gear/Spur Gear and Pinion/Metal Spur Gear/Double Spur Gear/spur gears for sale/spur gears/helical spur gear/plastic spur gears for sale/metal spur gear
Material: Stainless Steel, Aluminum, Brass, Nylon, Plastic, etc.
Surface: blackened, electroless nickel plating
Size: Customized
Features: Gear transmission has the advantages of reliable operation, stable transmission ratio, high efficiency, can transmit motion between any two axes in space, and has the advantages of wide response.
Specification Table
| Form | From | B | Shape | DH7 | d | And | df | Allowable Torque (N m) |
Backlash | ||
| Category | m |
Number
of
Teeth |
Tooth
width |
Shaft Hole
Diameter (1MM) |
Base
circle Diameter |
Addendum
Diameter |
Root
circle Diameter |
Bending
Strength |
Tooth
surface Strength |
||
| Modulus | Round hole H |
S45C | |||||||||
|
Round Hole KLD8SA
KLD8SB
KLD8SC
KLD8SD
KLD8SE |
0.8 |
20 | 3 |
A |
4-5 | 10 | 11 | 8.75 | 0.42 | 0.024 | |
| 24 | 4-6.35 |
12 | 13 | 10.75 | 0.54 | 0.035 | 0-0.1 |
||||
| 25 | 12.5 | 13.5 | 11.25 | 0.58 | 0.038 | ||||||
| 28 | 14 | 15 | 12.75 | 0.68 | 0.048 | ||||||
| 30 | 15 | 16 | 13.75 | 0.74 | 0.055 | ||||||
| 32 | 16 | 17 | 14.75 | 0.8 | 0.066 | ||||||
| 36 | 18 | 19 | 16.75 | 0.94 | 0.084 | ||||||
| 40 | 2 |
20 | 21 | 18.75 | 0.72 | 0.068 | |||||
| 45 | 22.5 | 23.5 | 21.25 | 0.83 | 0.084 | ||||||
| 48 | 24 | 25 | 22.75 | 0.9 | 0.1 | ||||||
| 50 | 25 | 26 | 23.75 | 0.95 | 0.11 | ||||||
| 60 | 5-16.35 |
30 | 31 | 28.75 | 1.18 | 0.15 | |||||
| 35 | 35 | 36 | 33.75 | 1.42 | 0.15 | ||||||
| 40 | 40 | 41 | 38.75 | 1.65 | 0.28 | ||||||
| 50 | 50 | 51 | 48.75 | 2.13 | 0.46 | ||||||
| 60 | 60 | 61 | 58.75 | 2.59 | 0.68 | ||||||
Application : food processing/sewage treatment plant/filling machinery/transportation equipment/electronics/medical equipment/glass machinery/aircraft accessories/shipbuilding/home appliances/automotive/industrial equipment metal stamping parts.
Spur Gear transmission relies on the meshing of the driving gear and the driven gear to transmit motion and power. This is a gear driven between two parallel shafts. Spur gears are easy to process, can produce high-precision gears, and do not generate thrust (axial force) during transmission. They are one of the most common gears in actual production and use. Metal helical spur gears set for sale.
Contact Konlida Get drawing and quotation Oem custom machining gear Gear Type Power Transmission Gears Machinery Accessories Gears Gear Material Steel iron plastic material Small size light weight long life Gear module tooth number 49 kinds of modulus 0.1 to 45 mm Tooth number from 2 to 120 teeth 16 years CNC experience 48000㎡ factory 7 product machining craft 4 quality control Accuracy ±0.002mm Experienced team high precision low noise Imported process machine Quality inspection system 100000 dust-free workshop 3 4 5-axis equipment Surface treatment Ra1.6 Process high tolerance low wear long life gears Small batch trial order 15 working days delivery 1 piece quick proofing Oem Custom machining gear Running stability Complete specifications
