Product Overview
carries out scale livestock farming based on the combination of traditional breeding and modern agricultural sci-tech. We run a complete product traceability system to completely guarantee product safety. All these ensure the safety and health of Fine materials: is manufactured based on high quality raw materials which are supplied by our reliable partners. These partners are all well-selected by us. The defective product will not be sent to customers thanks to the strict quality control. has a wide range of applications. has strong technical force, strict quality management system, and perfect after-service mechanism.

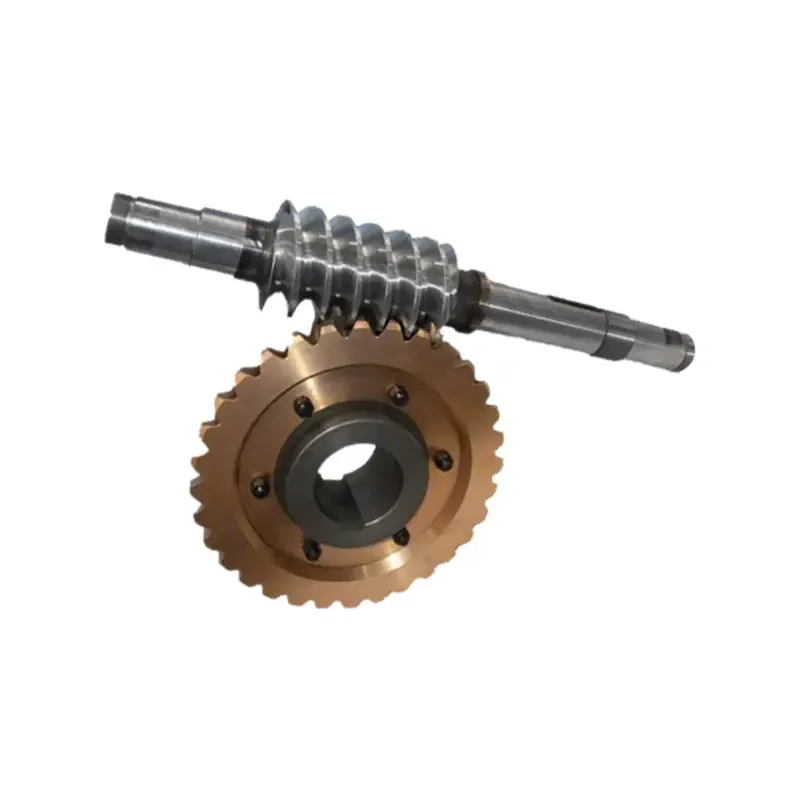

Transmission Type | ZA Type (Archimedes) | ||
Number of Turbine Teeth | Z | 72 | |
Turbine Face Modulus | M | 1.6 | |
Dividing Circle Diameter | D | 115.2 | |
Helix Angle | β | 14.25° | |
Pressure Angle | α | 20° | |
Modification Coefficient | x | 0.5 | |
Number of Worm Heads | Z1 | 9 | |
Center Distance | a | 73.8±0.015 | |
Vortex Direction | Right | ||
Accuracy Class | Level 6 | GB10089 | |
Transmission Type | ZA Type (Archimedes) | Transmission Type | ZA Type | ||||
Number of Paired Screw Heads | Z1 | 1 | Number of worm heads | Z1 | 1 | ||
Turbine Face Modulus | M | 2.5 | Modulus | Mt | 2.5 | ||
Lead Angle | γ | 2°51 43.2〞 | Lead angle | γ | 3°34＇35〞（3.5763°） | ||
Helix Direction | Right | ||||||
Axial Tooth Profile Angle of Worm | α | 20° | Helix direction | Right | |||
Number of Turbine Teeth | Z2 | 35 | Axial tooth profile angle of screw rod | α | 20° | ||
Center Distance | a | 68.75±0.02 | Number of matched turbine teeth | Z2 | 50 | ||
Turbine Displacement Coefficient | X2 | 0 | Center distance | a | 82.5±0.02 | ||
Accuracy Class | Turbine6e/GB10098 | Addendum diameter | da1 | ∅45 | |||
Pairing Worm Drawing Number | GY455-5-32 | Dividing circle diameter | d1 | ∅40 | |||
Turbine Pitch Cumulative Tolerance | Fp | 0.027 | Root circle diameter | df1 | ∅34 | ||
Pitch Limit Deviation | fpt | ±0.0085 | |||||
Company Advantages
has developed well in the field of since its establishment. We have a professional management team to conduct our business. Depending on their rich industrial experience and expertise in they are able to conduct project management throughout the whole order process. Our values are service excellence, flexibility, and creativity. We will equip our company with all the resources and talents to excel in areas of quality, service, and innovation competitiveness.
