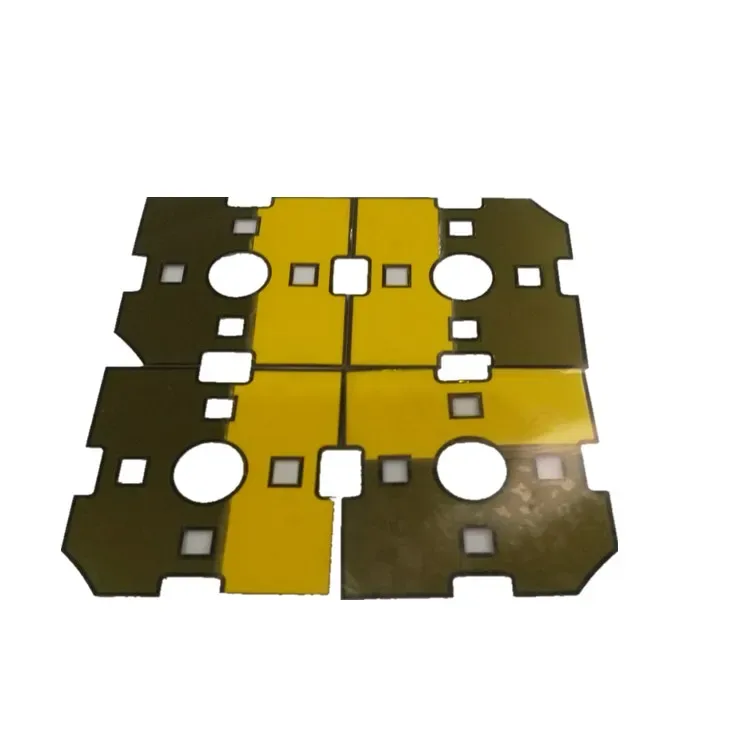

Thermal Pyrolytic Graphite Sheet For Pcb
Quick Detail
have a wide range of colors, styles, and sizes. They are of simple design, fine workmanship, and standard sizes. is made from best suited inventory of raw material. It is made under normal manufacturing tolerances and quality control procedures. service team always respect every customers.
Pyrolytic graphite sheet is a new type of heat-conducting heat-dissipating material that conducts heat uniformly along both sides, shielding heat sources and components while improving the performance of consumer electronics.
The color is generally black, the material is divided into two types, one is natural graphite after exquisite processing, the thermal conductivity can reach 800W//M·K, and the other is artificial graphite, which is formed by carbonization and calendering of polyimide film.
The coefficient is as high as 1700 W/M·K in the horizontal direction.
Pyrolytic graphite sheet are used in ICs, CPUs, MOS, LEDs, heat sinks, LCD-TVs, notebook computers, communication devices, wireless switches, DVDs, handheld devices, and more.
Horizontal thermal conductivity: 1300~1600W//M·K
Vertical thermal conductivity: 15~20W//M·K
Heat temperature: - 40 ℃ to 400 ℃
Density: 1.7 ~ 2.0 g/cm³
Thickness: 0.027 ~ 0.08 mm
Hardness: 85 A
The surface resistance: ≤0.1Ω
Widely used in the plasma TV, LCD monitor, LCD TV, mobile phone, Laptop PC, Desktop PC, PDA, MP4, communications cabinets, medical instruments and other electronic products. It is widely used in electronic products such as PDP TV, LCD display, LCD TV, mobile phone, notebook computer, MP3, communication cabinet, medical instrument, etc., as well as specific and general applications in the field of military and aerospace in the conductive parts of electronic products, such as antenna module, tail plug, receiver, case seal, etc.It mainly plays the role of shielding and conducting electricity.
Konlida is an ISO9001:2008, ISO13485:2016 quality system certification company. Since its establishment in 2006, we are the world's leading manufacturer of EMI, EMC, thermal management, precision die-cutting, ultra-precision metal and non-metal products for customers in the electronics, communications, medical, automotive and other industries.
We have the ability to provide customers from solutions to material selection to process implementation to complete test data, and more. Even difficult design issues, we can solve it with our professional experience. We have excellent production equipment and excellent process capability, which can provide professional service to global customers, to help them solve manufacturing and assembly issues. We are doing our best to provide customers with competitive prices, high-quality products and excellent service!
Company Information
is a company located in The products include Our company created series of products wholeheartedly. And they have received extensive attention in the market since the launch. has always been dedicated to providing customers with good products and sound after-sales service. Our company has a number of production lines and advanced production equipment. Based on the highly automated production, we could provide our clients with efficient and high-quality custom services.
Contact now and you can get free samples!
