Diameter
16mm
Features 2
Zero backlash,suitable for forward reverse
Features 1
Design for encoder,stepmotor
Body Material
Aluminum alloy
OEM & ODM
Acceptable
Surface Treatment
Oxidation
Standard or Nonstandard
Standard
Flexible or Rigid
Flexible
Structure
Universal
Customized support
OEM, ODM
Applicable Industries
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Food Shop, Printing Shops, Energy & Mining
Warranty
1 years
Length
17.4mm
Product name
Flexible Coupling 5*8
Application
Industrial Equipment
Material
Aluminium, Aluminium
Place of Origin
SUZHOU
Quick Overview
are of good efficacy and excellent quality. They receive wide acclaim in the market. is made using advanced production technology in tune with the industrial principles. The product has been quality tested before delivery to ensure that it is flawless and free from any defect. With many advantages, the product has earned a good reputation in the market and has extensive market potential.
Product Description
Features:
● Integrated structure, the overall use of high-strength alu minum alloy material .● Elasticity compensates radial,angular and axial deviations.
● Shaft and axial connection without gaps suitable for for
ward and reverse rotation.
● Commonly used in encodersstepper motors
●Tightening method of positioning screw.

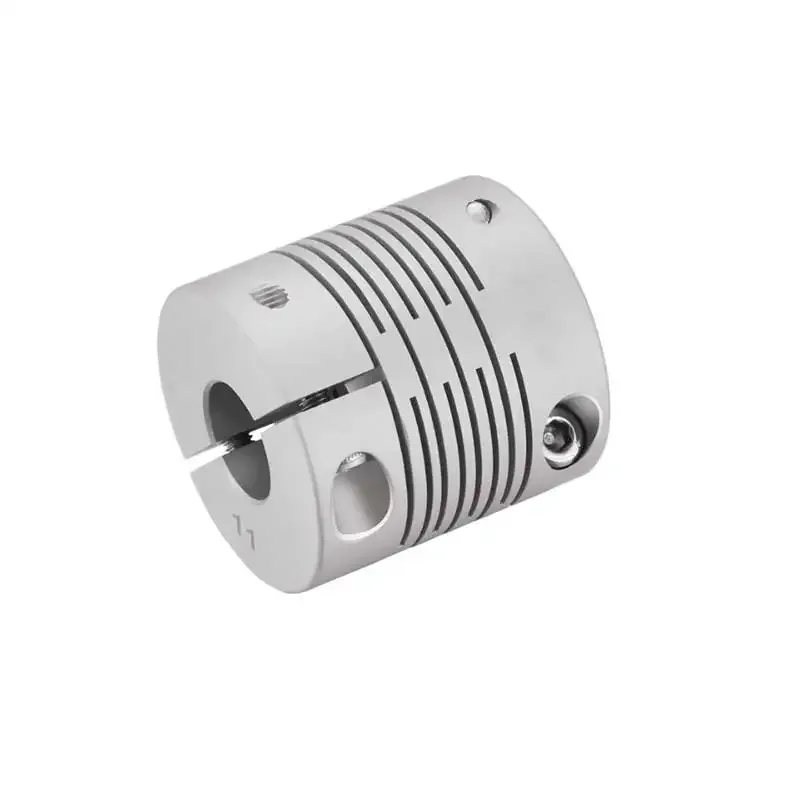

Aluminum Alloy Parallel Lines Top Tight Series Flexible Coupling Servo Shaft Coupling Helical Coupling
Specification
Dimension:(Unit:mm)
Model Parameter | Common Bore Diameter d1,d2 | ΦD | L | L1 | L2 | F | M | Tightening Screw Torque (N.M) | ||||||||
KLD-16X17.4 | 3,4.5,6, | 16 | 17.4 | 0.55 | 1.18 | 3 | M3 | 0.7 | ||||||||
KLD-19X20 | 3,4,5,6,6.35,7,8 | 19 | 20 | 0.55 | 1.18 | 2.3 | M3 | 0.7 | ||||||||
KLD-24X25 | 4,5,6,6.35,7.8.9.10,11 | 24 | 25 | 0.55 | 1.49 | 4.25 | M4 | 1.7 | ||||||||
KLD-29X30 | 5,6,6.35,7,8,9,9.525,10,11,12,12.7 | 29 | 30 | 0.55 | 1.81 | 5.1 | M5 | 4 | ||||||||
KLD-34X35 | 8,9,9.525,10,11,12,12.7,14,15,16. | 34 | 35 | 0.8 | 2.09 | 5 | M5 | 4 | ||||||||
Processed with H7 standard tolerance. The inner diameter size marked in the table is for reference only. The inner diameter required by the customer, please contact the salesman for detailed parameters. | ||||||||||||||||
Specifications(Unit:mm)
Model Parameter | Rated Torque(N.m) | Allowable eccentricity (mm) | Allowable Deflection Angle (°) | Allowable Axial Deviation (mm) | Maximum Speed (rpm) | Static Torsional Stiffness (N· m/rad) | Moment of Inertia (N· m) | Coupling Weight (g) | ||||||||
KLD-16X17.4 | 0.75 | 0.05 | 0.5 | ±0.1 | 24000 | 200 | 2.8x10-7 | 7 | ||||||||
KLD-19X20 | 1.5 | 0.05 | 0.5 | ±0.1 | 20000 | 270 | 6.2x10-7 | 10 | ||||||||
KLD-24X25 | 2.2 | 0.05 | 0.5 | ±0.1 | 16000 | 790 | 2.0x10-6 | 22 | ||||||||
KLD-29X30 | 3 | 0.05 | 0.5 | ±0.1 | 13000 | 1400 | 5.2x10-6 | 40 | ||||||||
KLD-34X35 | 4.5 | 0.05 | 0.5 | ±0.1 | 11000 | 2200 | 1.1x10-5 | 64 | ||||||||
Remarks: The above inertia moment and various technical parameters are measured from the maximum aperture as the standard. The maximum rated torque is related to the durability of the coupling itself. The larger the outer diameter, the greater the force,and the smaller the outer diameter is. higher speed. | ||||||||||||||||
