Aluminum Parallel Flexible Setscrew Coupling 20*26 For Cnc Machine
5.0
Shipping:
Support Sea freight
Place of Origin:
China
Payments:
L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA
Lead Time:
1-10000(pieces):30(days),>10000(pieces):To be negotiated(days)
Customization:
Customized packaging (Min. Order: 1000 sets),Customized logo (Min. Order: 1000 sets),Graphic customization (Min. Order: 1000 sets)
Brand Name:
KONLIDA
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Diameter
16mm
Features 2
Zero backlash,suitable for forward reverse
Features 1
Design for encoder,stepmotor
Body Material
Aluminum alloy
OEM & ODM
Acceptable
Surface Treatment
Oxidation
Standard or Nonstandard
Standard
Flexible or Rigid
Flexible
Structure
Universal
Customized support
OEM, ODM
Applicable Industries
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Food Shop, Printing Shops, Energy & Mining
Warranty
1 years
Length
17.4mm
Product name
Flexible Coupling 5*8
Application
Industrial Equipment
Material
Aluminium, Aluminium
Place of Origin
SUZHOU
Product Overview
The raw materials of Coupling are eco - friendly and safe. The additional functionality of this product further meets the customers needs. quality and service is something of great value.
Product Description
Features:
● Integrated structure,the overall use of high-strength aluminum alloy material.●Elasticity compensates radialangular and axial deviations.
●Shaft and axial connection without gaps suitable for for
ward and reverse rotation.
● Commonly used in servo,stepper motor
●Clamping screw tightening method.

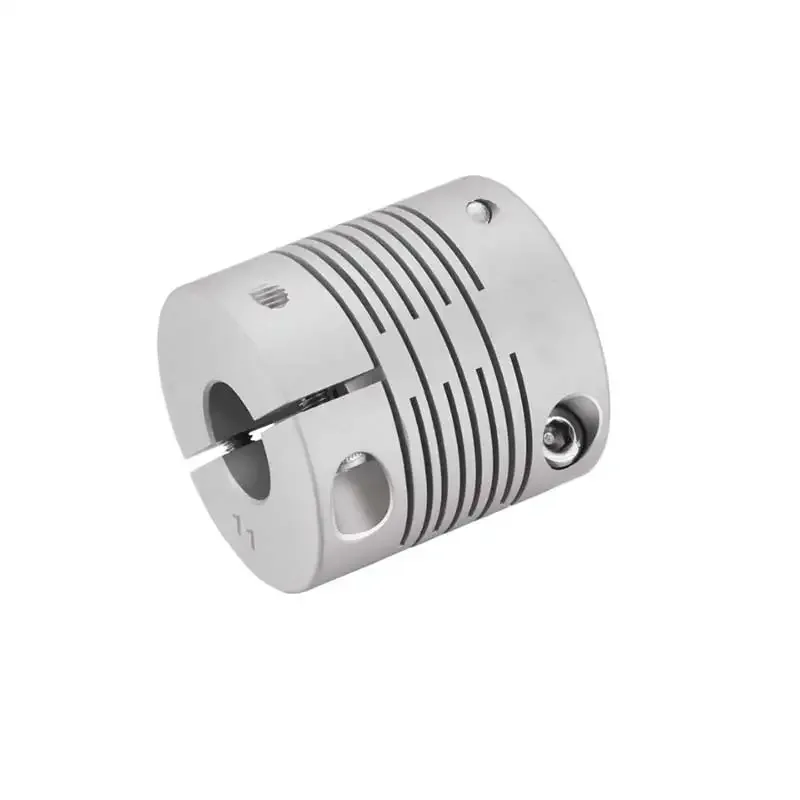

Aluminum Parallel Flexible Setscrew Coupling 20*26 For Cnc Machine
Specification
Dimension:(Unit:mm)
Model Parameter | Common Bore Diameter d1,d2 | ΦD | L | L1 | L2 | F | M | Tightening Screw Torque(N.M) | ||||||||
KLD-16X17.4 | 3,4.5,6 | 16 | 17.4 | 0.55 | 1.18 | 3.0 | M2.5 | 1 | ||||||||
KLD-19X20 | 3,4,5,6,6.35,7,8 | 19 | 20 | 0.55 | 1.18 | 3.4 | M2.5 | 1 | ||||||||
KLD-24X25 | 4,5,6,6.35,7.8.9.10,11 | 24 | 25 | 0.55 | 1.49 | 3.78 | M3 | 1.5 | ||||||||
KLD-29X30 | 5,6,6.35,7,8,9,9.525,10,11,12,12.7 | 29 | 30 | 0.55 | 1.81 | 4.5 | M3 | 1.5 | ||||||||
KLD-34X35 | 8,9,9.525,10,11,12,12.7,14,15,16 | 34 | 35 | 0.8 | 2.09 | 5.1 | M3 | 1.5 | ||||||||
Specifications(Unit:mm) | ||||||||||||||||
Model Parameter | Rated Torque(N.m) | Allowable Eccentricity (mm) | Allowable Deflection angle (°) | Allowable Axial Deviation (mm) | Maximum Speed (rpm) | Static Torsional Stiffness (N· m/rad) | Moment of Inertia (N· m) | Coupling Weight (g) | ||||||||
KD-16X17.4 | 0.75 | 0.05 | 0.5 | ±0.1 | 8000 | 200 | 2.5x10-7 | 7 | ||||||||
KD-19X20 | 1.5 | 0.05 | 0.5 | ±0.1 | 8000 | 270 | 5.8x10-7 | 12 | ||||||||
KD-24X25 | 2.2 | 0.05 | 0.5 | ±0.1 | 6200 | 790 | 1.8x10-6 | 23 | ||||||||
KD-29X30 | 3 | 0.05 | 0.5 | ±0.1 | 5000 | 1400 | 5.2x10-6 | 41 | ||||||||
KD-34X35 | 4.5 | 0.05 | 0.5 | ±0.1 | 4300 | 2200 | 1.1x10-5 | 62 | ||||||||
Remarks: The above inertia moment and various technical parameters are measured from the maximum aperture as the standard. The maximum rated torque is related to the durability of the coupling itself. The larger the outer diameter, the greater the force,and the smaller the outer diameter is. higher speed. | ||||||||||||||||
Application
Packaging:Jaw Coupling D20 L25mm Coupling Stepper Motor 5mm 8mm Plum Shaped Clamp Shaft Coupler For Servo Motor
1. Commerial Packaging: PE bags,PP bags,Bubble bags,Carton box,Wooden box for safe package.
2. According to clients' requirements.Aluminum Parallel Flexible Setscrew Coupling 20*26 For Cnc Machine
Factory
Suzhou Konlida Precision Electronic Co., Ltd.Established in 2006, the headquarter is in suzhou. KONLIDA is a specialized supplier of a full range of chains, sprockets, gears, gear racks, v belt pulley, timing pulley, V-belts, couplings, machined parts and so on.
Professional production of various process parts, can make a variety of complex process products.You can customize various products accordung to your needs.
One stop service ,source factory ,Suppprts small batch custmizatiom,No worries about delivery,Quality assurance after-sale guarantee.
Our Team
FAQ
Q1. Can I get 1 or more samples?Gnd Coupling Shaft Flexible Gear Aluminum Electric High Rigidity Parallel Lines Clamp S
A: Yes,Sample orders welcomed. Low amount free samples could be provided when we have stocks.
Aluminum Parallel Flexible Setscrew Coupling 20*26 For Cnc Machine
Q2. OEM/ODM accepted?45# Steel Plum Type High Rigid Coupling With Keyway
A: Yes, Please send you new product drawings or sample to us if you have, and we can custom-made as your required. We will also provide professional advices of the products to make the design to be maximize the performance.
Aluminum Parallel Flexible Setscrew Coupling 20*26 For Cnc Machine
Q3. If you can not find the product on our website,how do you do?
A: Please send us inquiry with product pictures and drawings by email or other ways you prefer, we'll check if we could produce.Aluminum Parallel Flexible Setscrew Coupling 20*26 For Cnc Machine
Company Advantages
has years of experience in manufacturing and marketing Coupling and we are renowned for providing high-quality products in the market. Over the years, our company has built a solid reputation for the commitment to quality, reliability, technical expertise and the best in customer support. The most professional manufacturer for Coupling is endless pursuit. Inquiry!
Our products are of reliable quality, with great cost performance and you can purchase them with confidence. If you are in need, please contact us for business discussion.
