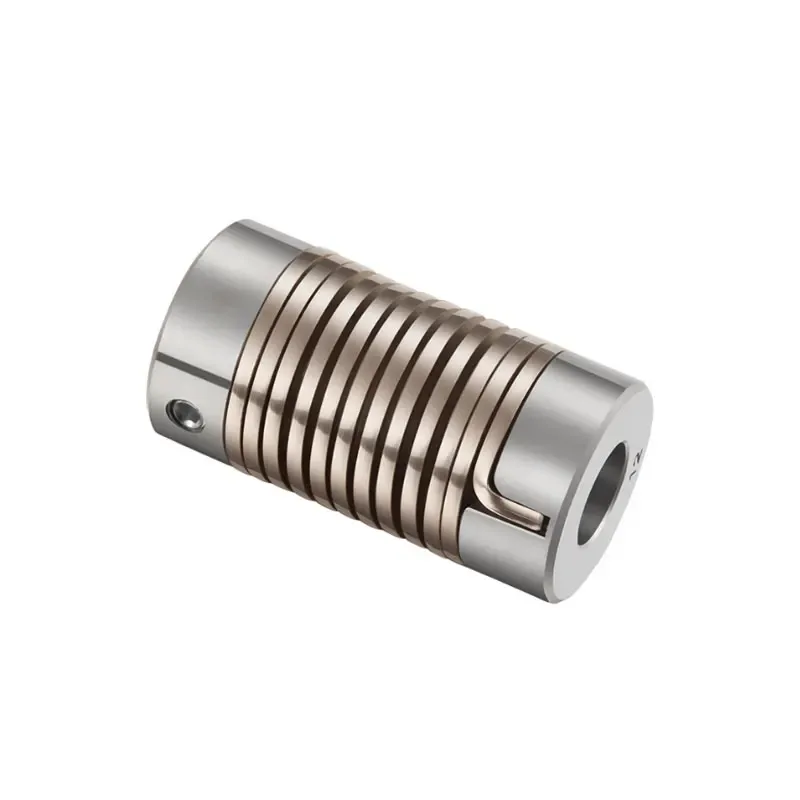

China Flexible Spring Coupling Electrical High Torque Connection Elastic Coupling For Encoder Step Motor 1

China Flexible Spring Coupling Electrical High Torque Connection Elastic Coupling For Encoder Step Motor 2

China Flexible Spring Coupling Electrical High Torque Connection Elastic Coupling For Encoder Step Motor 3

China Flexible Spring Coupling Electrical High Torque Connection Elastic Coupling For Encoder Step Motor 4

China Flexible Spring Coupling Electrical High Torque Connection Elastic Coupling For Encoder Step Motor 5

China Flexible Spring Coupling Electrical High Torque Connection Elastic Coupling For Encoder Step Motor 6

China Flexible Spring Coupling Electrical High Torque Connection Elastic Coupling For Encoder Step Motor 7

China Flexible Spring Coupling Electrical High Torque Connection Elastic Coupling For Encoder Step Motor

Shipping:

Support Sea freight

Place of Origin:

China

Payments:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA

Lead Time:

1-10000(pieces):30(days),>10000(pieces):To be negotiated(days)

Customization:

Customized packaging (Min. Order: 1000 sets),Customized logo (Min. Order: 1000 sets),Graphic customization (Min. Order: 1000 sets)

Brand Name:

KONLIDA

Inquiry

Write a Review

Features 2

Good softness,not easy to break

Features 1

Design for encoder

Body Material

Aluminum

OEM & ODM

Acceptable

Surface Treatment

Oxidation

Standard or Nonstandard

Standard

Flexible or Rigid

Flexible

Structure

Universal, Encoder

Customized support

OEM, ODM

Applicable Industries

Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Food Shop, Printing Shops, Energy & Mining

Warranty

1 years

Color

Custom Requirement

Product name

Flexible Coupling 5*8

Material

Aluminium, Plastic

Place of Origin

SUZHOU

Product Overview

The design of Encoder Coupling is carefully considered from the perspective of users. It meets all performance requirements in its industry. This product is well received by the global market and has a broad market prospect.

China Flexible Spring Coupling Electrical High Torque Connection Elastic Coupling For Encoder Step Motor 8

China Flexible Spring Coupling Electrical High Torque Connection Elastic Coupling For Encoder Step Motor 9

Product Description

China Flexible Spring Coupling Electrical High Torque Connection Elastic Coupling For Encoder Step Motor 10

Features:

● Bushings made of Zinc alloy

● Elastomer made of Spring steel

● Simple structure,flexible, low inertia,allowing angular misalignments

● The installation is easy, the spring steel is more efficiently absorbed parallelangular misalignments and shaft end-play

● Applicable to micro-motorencoder

● Setscrew type.

China Flexible Spring Coupling Electrical High Torque Connection Elastic Coupling For Encoder Step Motor

China Flexible Spring Coupling Electrical High Torque Connection Elastic Coupling For Encoder Step Motor 13

Specification

Dimension:(Unit:mm)

Model Parameter	Common Bore Diameter d1,d2	ΦD	L	LF	F	M	Tightening Screw Torque (N.M)
KLD-16X25	5,6,6.35,7,8,9,10	16	25	11.45	4.0	M3	0.7
KLD-16X35	5,6,6.35,7,8,9,10	16	35	12.5	3.8	M4	1.7
KLD-26X50	6,6.35,7,8,9,10,11,12,12.7,14	26	50	17	5.0	M5	4
Processed with H7 standard tolerance. The inner diameter size marked in the table is for reference only. The inner diameter required by the customer, please contact the salesman for detailed parameters.

Specifications(Unit:mm)

Model Parameter	Rated Torque(N.m)	Allowable Eccentricity (mm)	Allowable Deflection Angle (°)	Allowable Axial Deviation (mm)	Maximum Speed (rpm)	Moment of Inertia (N· m)	Coupling Weight (g)
KLD-16X25	0.5	1	8	±1.0	3000	1.02x10-6	30
KLD-16X35	0.5	1	8	±1.0	3000	1.02x10-6	70
KLD-26X50	1.5	3	8	±1.0	3000	1.15x10-5	130
Processed with H7 standard tolerance. The inner diameter size marked in the table is for reference only. The inner diameter required by the customer, please contact the salesman for detailed parameters.

China Flexible Spring Coupling Electrical High Torque Connection Elastic Coupling For Encoder Step Motor 14

Application

It is widely used in CNC machine tools, laser cutting machines, ball screws, module slides, electronic automation equipment and other fields.

China Flexible Spring Coupling Electrical High Torque Connection Elastic Coupling For Encoder Step Motor 15

Packaging:Jaw Coupling D20 L25mm Coupling Stepper Motor 5mm 8mm Plum Shaped Clamp Shaft Coupler For Servo Motor 1. Commerial Packaging: PE bags,PP bags,Bubble bags,Carton box,Wooden box for safe package. 2. According to clients' requirementsChina Flexible Spring Coupling Electrical High Torque Connection Elastic Coupling For Encoder Step Motor

China Flexible Spring Coupling Electrical High Torque Connection Elastic Coupling For Encoder Step Motor 16

Factory

China Flexible Spring Coupling Electrical High Torque Connection Elastic Coupling For Encoder Step Motor 17

China Flexible Spring Coupling Electrical High Torque Connection Elastic Coupling For Encoder Step Motor 18

Suzhou Konlida Precision Electronic Co., Ltd.Established in 2006, the headquarter is in suzhou. KONLIDA is a specialized supplier of a full range of chains, sprockets, gears, gear racks, v belt pulley, timing pulley, V-belts, couplings, machined parts and so on. Professional production of various process parts, can make a variety of complex process products.You can customize various products accordung to your needs. One stop service ,source factory ,Suppprts small batch custmizatiom,No worries about delivery,Quality assurance after-sale guarantee.

China Flexible Spring Coupling Electrical High Torque Connection Elastic Coupling For Encoder Step Motor 19

Our Team

China Flexible Spring Coupling Electrical High Torque Connection Elastic Coupling For Encoder Step Motor 20

China Flexible Spring Coupling Electrical High Torque Connection Elastic Coupling For Encoder Step Motor 21

FAQ

Q1. Can I get 1 or more samples?Coupler Zinc Alloy Flexible Shaft Couplings For Micro Motor And Encoder Coupling A: Yes,Sample orders welcomed. Low amount free samples could be provided when we have stocks. China Flexible Spring Coupling Electrical High Torque Connection Elastic Coupling For Encoder Step Motor Q2. OEM/ODM accepted?45# Steel Plum Type High Rigid Coupling With Keyway A: Yes, Please send you new product drawings or sample to us if you have, and we can custom-made as your required. We will also provide professional advices of the products to make the design to be maximize the performance. China Flexible Spring Coupling Electrical High Torque Connection Elastic Coupling For Encoder Step Motor

Q3. If you can not find the product on our website,how do you do? A: Please send us inquiry with product pictures and drawings by email or other ways you prefer, we'll check if we could produce.China Flexible Spring Coupling Electrical High Torque Connection Elastic Coupling For Encoder Step Motor
