Gear Coupling
Our company processes and customizes various standard gears, special-shaped gears, turbine worms, gear couplings and machined parts.

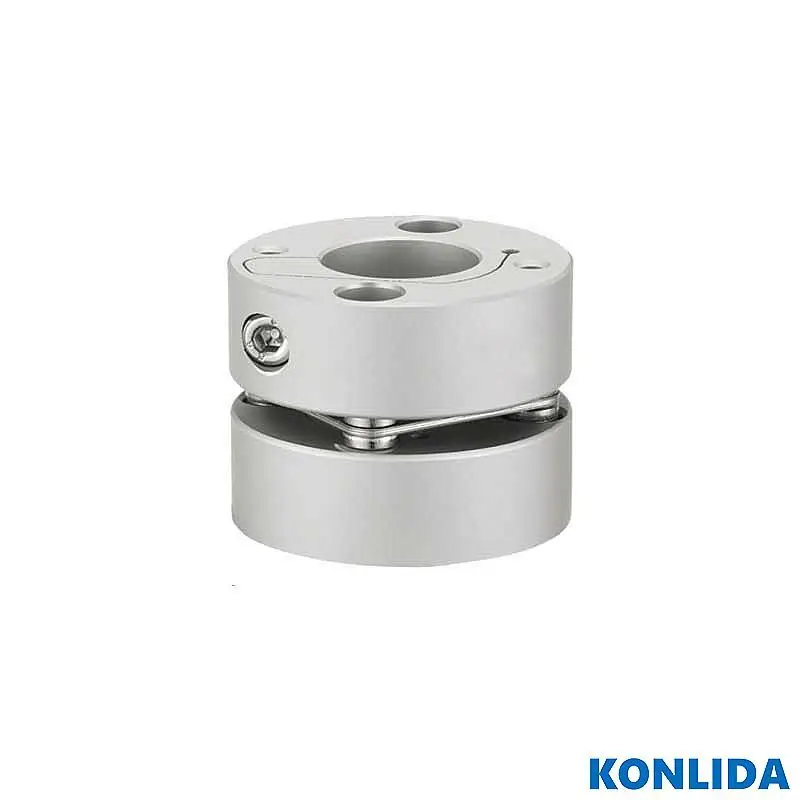

Name: Gear Couplings
Keywords: Gear Couplings
Material:
main body aluminum alloy
Diaphragm Material: Stainless Steel
Specification Table
|
Model |
Commonly used d1/d2
Inner diameter size
|
φD |
L |
LF |
S |
F |
M |
Tightening torque
(n.m)
|
|
KLD-19X20 |
3-4-5-6-6.35-7-8 |
19 |
20 |
9.1 |
1.8 |
3.3 |
M2.5 |
1 |
|
KLD-26X26 |
3-4-5-6-6.35-7-8-9-9,52-20 |
26 |
26 |
11.35 |
2.6 |
3.9 |
M3 |
1.5 |
|
KLD-34X32 |
5-6-6.35-7-8-9-9,52-10-11-12-12.7-14 |
34 |
32 |
14.25 |
3.5 |
4.85 |
M4 |
3.5 |
|
KLD-39X34.5 |
8-9-9.525-10-11-12-12.7-14-15-16 |
39 |
34.5 |
14.9 |
4.5 |
5 |
M4 |
3.5 |
|
KLD-44X34.5 |
8-9-9.525-10-11-12-12.7-14-15-16-17-18-19-20 |
44 |
34.5 |
14.9 |
4.5 |
5 |
M4 |
3.5 |
|
KLD-56x45 |
8-9-9.525-10-11-12-12.7-14-15-16-17-18-19-20-22-24-25 |
56 |
45 |
19.75 |
5.5 |
6.4 |
M5 |
8 |
|
Remarks: The inner holes at both ends of the coupling can be freely combined from small to large inner diameters. The inner holes are processed with H7 standard tolerance. The inner hole sizes marked in the table are for reference only. The diameter required by customers, please contact customer service or salesperson. The technical staff consults the detailed parameters. |
||||||||
