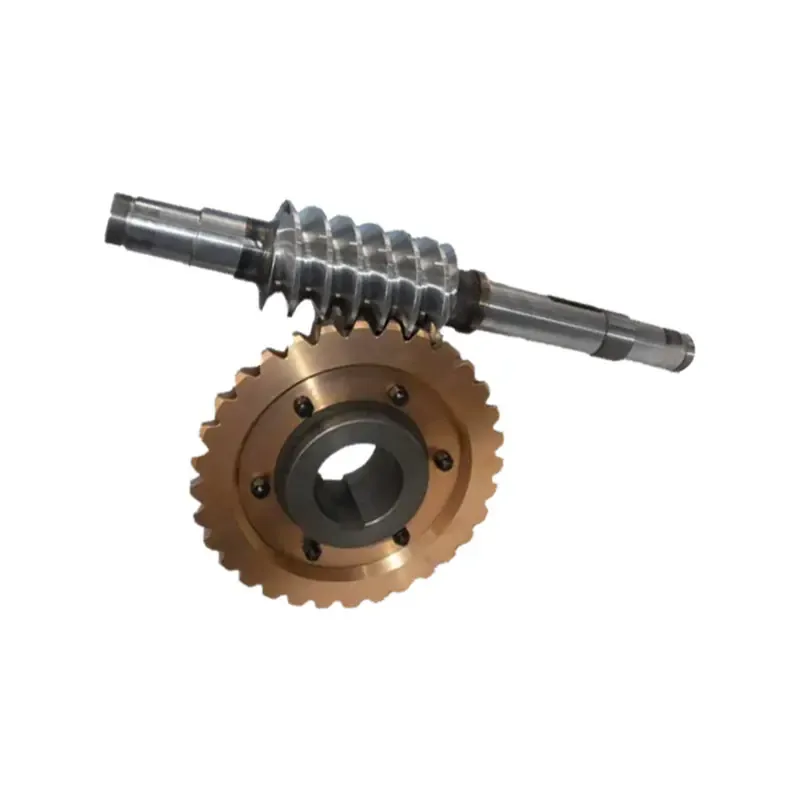

Product Overview
The design of Worm Gear achieves a perfect balance between aesthetics and functionality. Compared with other products, the product has obvious superiority such as long service life, stable performance, and good usability. The Worm Gear produced by is very popular in the market and is widely used in industry. extensively implements the quality control system.
Transmission type | ZA type (Archimedes) | ||
Number of Turbine Teeth | Z | 72 | |
Turbine Face Modulus | M | 1.6 | |
Dividing Circle Diameter | D | 115.2 | |
Helix Angle | β | 14.25° | |
Pressure Angle | α | 20° | |
Modification Coefficient | x | 0.5 | |
Number of Worm Heads | Z1 | 9 | |
Center Distance | a | 73.8±0.015 | |
Vortex Direction | Right | ||
Accuracy Class | Level 6 | GB10089 | |
Transmission Type | ZA Type (Archimedes) | Transmission Type | ZA Type | ||||
Number of Paired Screw Heads | Z1 | 1 | Number of worm heads | Z1 | 1 | ||
Turbine Face Modulus | M | 2.5 | Modulus | Mt | 2.5 | ||
Lead Angle | γ | 2°51 43.2〞 | Lead angle | γ | 3°34＇35〞（3.5763°） | ||
Helix Direction | Right | ||||||
Axial Tooth Profile Angle of Worm | α | 20° | Helix direction | Right | |||
Number of Turbine Teeth | Z2 | 35 | Axial tooth profile angle of screw rod | α | 20° | ||
Center Distance | a | 68.75±0.02 | Number of matched turbine teeth | Z2 | 50 | ||
Turbine Displacement Coefficient | X2 | 0 | Center distance | a | 82.5±0.02 | ||
Accuracy Class | Turbine6e/GB10098 | Addendum diameter | da1 | ∅45 | |||
Pairing Worm Drawing Number | GY455-5-32 | Dividing circle diameter | d1 | ∅40 | |||
Turbine Pitch Cumulative Tolerance | Fp | 0.027 | Root circle diameter | df1 | ∅34 | ||
Pitch Limit Deviation | fpt | ±0.0085 | |||||
Company Introduction
ranked first in China's production and sales of Worm Gear for many years. We have a long-term and stable Worm Gear market in countries like the United States and Japan. By ceaselessly improving our product quality, types, and expanding application fields, we have established strategic cooperation with many well-known enterprises. Focusing on cultivating high-level and innovative talents is the assurance for the improvement of Welcome to visit our factory!
We are able to provide you with massive industrial information. If you want to know more about it, feel free to contact us.
