Product Overview

Worm Gear is finished efficiently from material selection to packaging. thinks highly of the performance of Worm Gear which is used to be economical and eco-friendly. has a team with creative thinking, rich experience, and excellent service.

Custom Modulus Gear Lathe Bronze Gears 0.5m Brass 1/30 Worm Turbine Worm 8

Custom Modulus Gear Lathe Bronze Gears 0.5m Brass 1/30 Worm Turbine Worm 9

OEM&ODM（Turbine Worm）

We can make standard gear/ special gear /Turbine Worm/Gear Rack as per drawing or sample. The gear material can be carbon steel, stainless steel, aluminum, copper, brass and so on. Let us know your requirements today.

Factory Custom Modulus Gear Lathe Bronze Gears 0.5m Brass 1/30 Worm Turbine Worm

Get a Free Quotation via Us >>> Go

Product Description

Characteristics of Turbine worm 1. High anti-wearing copper casting parts 2. Widely used in mining equipment, construction machine and metallurgy and other high loaded large machiner. 3. Strict casting processing control, make the tolerance less than 0.003m. 4. Long working life and PRsmooth surface treatment.

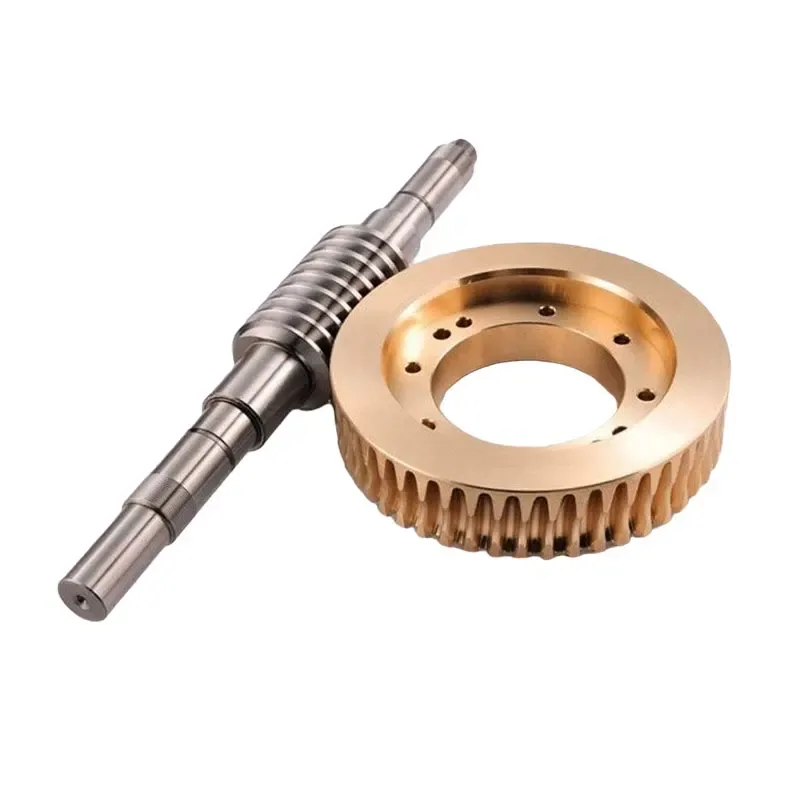

Custom Modulus Gear Lathe Bronze Gears 0.5m Brass 1/30 Worm Turbine Worm

Custom Modulus Gear Lathe Bronze Gears 0.5m Brass 1/30 Worm Turbine Worm 13

Custom Modulus Gear Lathe Bronze Gears 0.5m Brass 1/30 Worm Turbine Worm 14

Specification

Transmission type	ZA type (Archimedes)
Number of Turbine Teeth	Z	72
Turbine Face Modulus	M	1.6
Dividing Circle Diameter	D	115.2
Helix Angle	β	14.25°
Pressure Angle	α	20°
Modification Coefficient	x	0.5
Number of Worm Heads	Z1	9
Center Distance	a	73.8±0.015
Vortex Direction	Right
Accuracy Class	Level 6	GB10089

Transmission Type	ZA Type (Archimedes)			Transmission Type	ZA Type
Number of Paired Screw Heads	Z1	1	Number of worm heads	Z1	1
Turbine Face Modulus	M	2.5	Modulus	Mt	2.5
Lead Angle	γ	2°51 43.2〞	Lead angle	γ	3°34＇35〞（3.5763°）
Helix Direction	Right
Axial Tooth Profile Angle of Worm	α	20°	Helix direction	Right
Number of Turbine Teeth	Z2	35	Axial tooth profile angle of screw rod	α	20°
Center Distance	a	68.75±0.02	Number of matched turbine teeth	Z2	50
Turbine Displacement Coefficient	X2	0	Center distance	a	82.5±0.02
Accuracy Class	Turbine6e/GB10098			Addendum diameter	da1	∅45
Pairing Worm Drawing Number	GY455-5-32			Dividing circle diameter	d1	∅40
Turbine Pitch Cumulative Tolerance	Fp	0.027	Root circle diameter	df1	∅34
Pitch Limit Deviation	fpt	±0.0085

Custom Modulus Gear Lathe Bronze Gears 0.5m Brass 1/30 Worm Turbine Worm 15

Quenching and Heat Treatment Process

In order to enhance the hardness and wear resistance of the tooth surface, the tooth surface can be subjected to high frequency quenching and heat treatment, thereby increasing the life of the gear

Custom Modulus Gear Lathe Bronze Gears 0.5m Brass 1/30 Worm Turbine Worm 16

Application

Food Processing/Sewage treatment plant/Filling Machinery/Transport Equipment/Electronic/Medical Instruments/Glass Machinery/Aircraft Accessories/Ship Manufacturin/Appliance/Auto/Industrial equipment metal stamping hardware parts.
