Quick Overview
Based on advanced production equipment and professional quality inspection equipment, the produced by are of reliable quality, firmness, and practicality. is designed and developed in accordance with industry norms and standards. The product passes the industry standard inspection, eliminates all flaw. This product becomes a hot spot among customers in the industry recently.

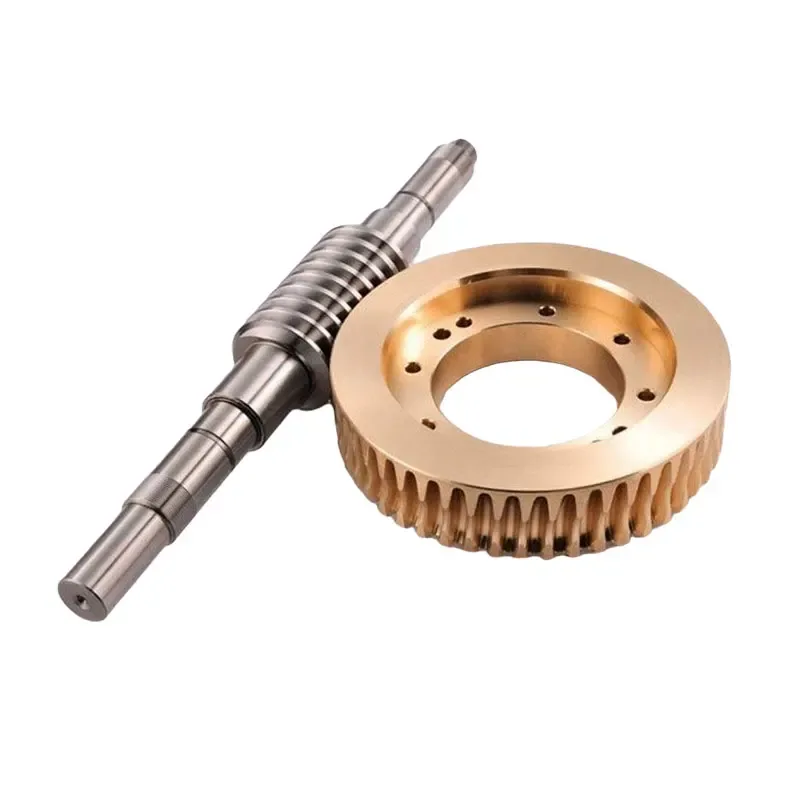

Transmission type | ZA type (Archimedes) | ||
Number of Turbine Teeth | Z | 72 | |
Turbine Face Modulus | M | 1.6 | |
Dividing Circle Diameter | D | 115.2 | |
Helix Angle | β | 14.25° | |
Pressure Angle | α | 20° | |
Modification Coefficient | x | 0.5 | |
Number of Worm Heads | Z1 | 9 | |
Center Distance | a | 73.8±0.015 | |
Vortex Direction | Right | ||
Accuracy Class | Level 6 | GB10089 | |
Transmission Type | ZA Type (Archimedes) | Transmission Type | ZA Type | ||||
Number of Paired Screw Heads | Z1 | 1 | Number of worm heads | Z1 | 1 | ||
Turbine Face Modulus | M | 2.5 | Modulus | Mt | 2.5 | ||
Lead Angle | γ | 2°51 43.2〞 | Lead angle | γ | 3°34＇35〞（3.5763°） | ||
Helix Direction | Right | ||||||
Axial Tooth Profile Angle of Worm | α | 20° | Helix direction | Right | |||
Number of Turbine Teeth | Z2 | 35 | Axial tooth profile angle of screw rod | α | 20° | ||
Center Distance | a | 68.75±0.02 | Number of matched turbine teeth | Z2 | 50 | ||
Turbine Displacement Coefficient | X2 | 0 | Center distance | a | 82.5±0.02 | ||
Accuracy Class | Turbine6e/GB10098 | Addendum diameter | da1 | ∅45 | |||
Pairing Worm Drawing Number | GY455-5-32 | Dividing circle diameter | d1 | ∅40 | |||
Turbine Pitch Cumulative Tolerance | Fp | 0.027 | Root circle diameter | df1 | ∅34 | ||
Pitch Limit Deviation | fpt | ±0.0085 | |||||
Company Introduction
( located in is a modern enterprise specializing in the supply of carries out professional market research and defines the accurate market positioning. is created based on our own R&D and design advantages. has a comprehensive service system covering from pre-sales to after-sales. We are able to provide one-stop and thoughtful services for consumers. After years of accumulation of production experience, has improved our production technology and it has been unanimously recognized by the industry. With experience and technology, we can not only provide customers with high-quality textile products but also provide custom services for customers.
have excellent quality and affordable price. We have discounts for bulk purchase. If you have any interest, feel free to contact us.
