Product name

Flexible Coupling 5*8

Application

Industrial Equipment

Material

Aluminium, Aluminium

Place of Origin

SUZHOU

Quick Detail

The entire manufacturing process of Coupling in monitored in real-time. The product will be strictly quality checked and tested before packing. Possessing these advantages, it has a vast application prospect.

Flexible High-strength Aluminum Alloy Coupler Parallel Lines Setscrew Coupling For Encoder Stepmotor 8

Flexible High-strength Aluminum Alloy Coupler Parallel Lines Setscrew Coupling For Encoder Stepmotor 9

Product Description

Flexible High-strength Aluminum Alloy Coupler Parallel Lines Setscrew Coupling For Encoder Stepmotor 10

Features:

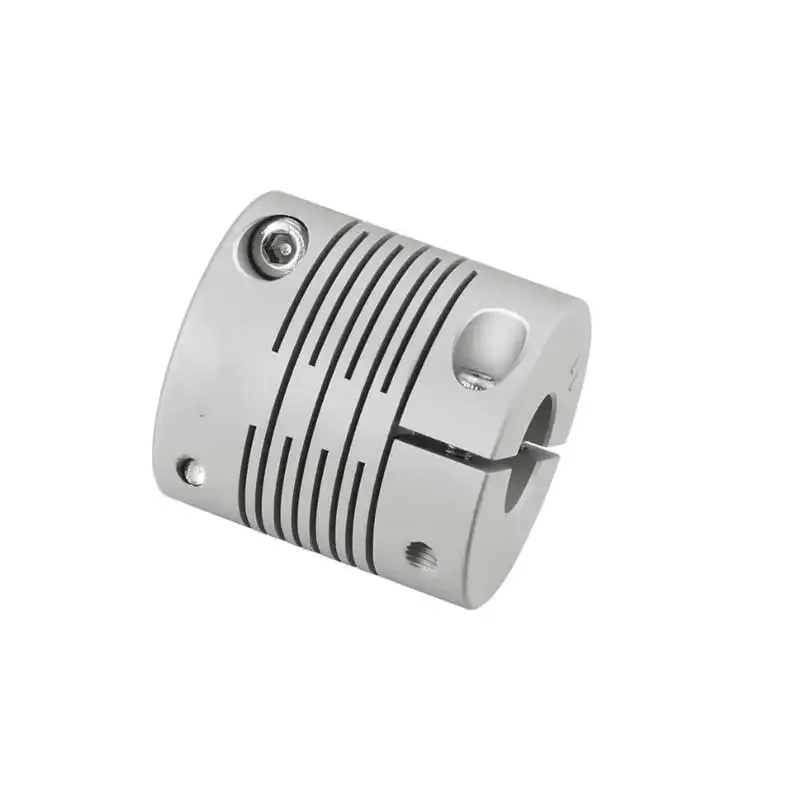

● Integrated structure,the overall use of high-strength aluminum alloy material.

●Elasticity compensates radialangular and axial deviations.

●Shaft and axial connection without gaps suitable for for ward and reverse rotation.

● Commonly used in servo,stepper motor

●Clamping screw tightening method.

Flexible High-strength Aluminum Alloy Coupler Parallel Lines Setscrew Coupling For Encoder Stepmotor

Flexible High-strength Aluminum Alloy Coupler Parallel Lines Setscrew Coupling For Encoder Stepmotor 13

Specification

Dimension:(Unit:mm)

Model Parameter	Common Bore Diameter d1,d2	ΦD	L	L1	L2	F	M	Tightening Screw Torque(N.M)
KLD-16X17.4	3,4.5,6	16	17.4	0.55	1.18	3.0	M2.5	1
KLD-19X20	3,4,5,6,6.35,7,8	19	20	0.55	1.18	3.4	M2.5	1
KLD-24X25	4,5,6,6.35,7.8.9.10,11	24	25	0.55	1.49	3.78	M3	1.5
KLD-29X30	5,6,6.35,7,8,9,9.525,10,11,12,12.7	29	30	0.55	1.81	4.5	M3	1.5
KLD-34X35	8,9,9.525,10,11,12,12.7,14,15,16	34	35	0.8	2.09	5.1	M3	1.5
Specifications(Unit:mm)

Model Parameter	Rated Torque(N.m)	Allowable Eccentricity (mm)	Allowable Deflection angle (°)	Allowable Axial Deviation (mm)	Maximum Speed (rpm)	Static Torsional Stiffness (N· m/rad)	Moment of Inertia (N· m)	Coupling Weight (g)
KD-16X17.4	0.75	0.05	0.5	±0.1	8000	200	2.5x10-7	7
KD-19X20	1.5	0.05	0.5	±0.1	8000	270	5.8x10-7	12
KD-24X25	2.2	0.05	0.5	±0.1	6200	790	1.8x10-6	23
KD-29X30	3	0.05	0.5	±0.1	5000	1400	5.2x10-6	41
KD-34X35	4.5	0.05	0.5	±0.1	4300	2200	1.1x10-5	62
Remarks: The above inertia moment and various technical parameters are measured from the maximum aperture as the standard. The maximum rated torque is related to the durability of the coupling itself. The larger the outer diameter, the greater the force,and the smaller the outer diameter is. higher speed.

Flexible High-strength Aluminum Alloy Coupler Parallel Lines Setscrew Coupling For Encoder Stepmotor 14

Flexible High-strength Aluminum Alloy Coupler Parallel Lines Setscrew Coupling For Encoder Stepmotor 15

Application

Packaging:Jaw Coupling D20 L25mm Coupling Stepper Motor 5mm 8mm Plum Shaped Clamp Shaft Coupler For Servo Motor 1. Commerial Packaging: PE bags,PP bags,Bubble bags,Carton box,Wooden box for safe package. 2. According to clients' requirements.Flexible High-strength Aluminum Alloy Coupler Parallel Lines Setscrew Coupling For Encoder Stepmotor
