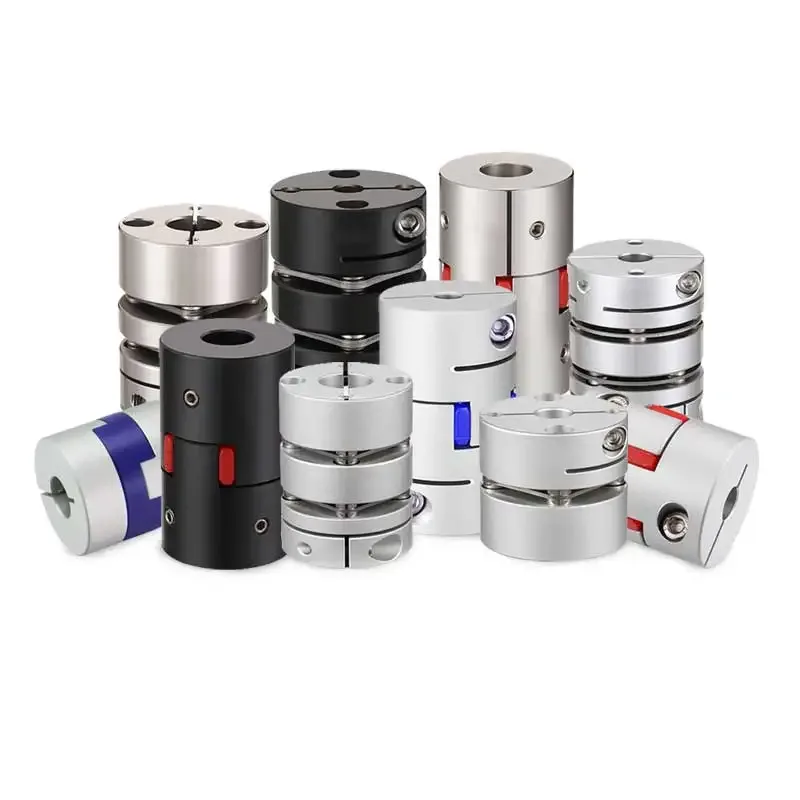

Quick Overview
Coupling is crafted using high quality materials we source from certified vendors of the market. This product has good performance and long service life. Konlida can meet the market demand with the highest efficiency.
Model Parameter | Common Bore Diameter d1,d2 | ΦD | L | L1 | L2 | F | M | Tightening Screw Torque(N.M) | ||||||||
KLD-16X17.4 | 3,4.5,6 | 16 | 17.4 | 0.55 | 1.18 | 3.0 | M2.5 | 1 | ||||||||
KLD-19X20 | 3,4,5,6,6.35,7,8 | 19 | 20 | 0.55 | 1.18 | 3.4 | M2.5 | 1 | ||||||||
KLD-24X25 | 4,5,6,6.35,7.8.9.10,11 | 24 | 25 | 0.55 | 1.49 | 3.78 | M3 | 1.5 | ||||||||
KLD-29X30 | 5,6,6.35,7,8,9,9.525,10,11,12,12.7 | 29 | 30 | 0.55 | 1.81 | 4.5 | M3 | 1.5 | ||||||||
KLD-34X35 | 8,9,9.525,10,11,12,12.7,14,15,16 | 34 | 35 | 0.8 | 2.09 | 5.1 | M3 | 1.5 | ||||||||
Specifications(Unit:mm) |
Model Parameter | Rated Torque(N.m) | Allowable Eccentricity (mm) | Allowable Deflection angle (°) | Allowable Axial Deviation (mm) | Maximum Speed (rpm) | Static Torsional Stiffness (N· m/rad) | Moment of Inertia (N· m) | Coupling Weight (g) | ||||||||
KD-16X17.4 | 0.75 | 0.05 | 0.5 | ±0.1 | 8000 | 200 | 2.5x10-7 | 7 | ||||||||
KD-19X20 | 1.5 | 0.05 | 0.5 | ±0.1 | 8000 | 270 | 5.8x10-7 | 12 | ||||||||
KD-24X25 | 2.2 | 0.05 | 0.5 | ±0.1 | 6200 | 790 | 1.8x10-6 | 23 | ||||||||
KD-29X30 | 3 | 0.05 | 0.5 | ±0.1 | 5000 | 1400 | 5.2x10-6 | 41 | ||||||||
KD-34X35 | 4.5 | 0.05 | 0.5 | ±0.1 | 4300 | 2200 | 1.1x10-5 | 62 | ||||||||
Remarks: The above inertia moment and various technical parameters are measured from the maximum aperture as the standard. The maximum rated torque is related to the durability of the coupling itself. The larger the outer diameter, the greater the force,and the smaller the outer diameter is. higher speed. |
