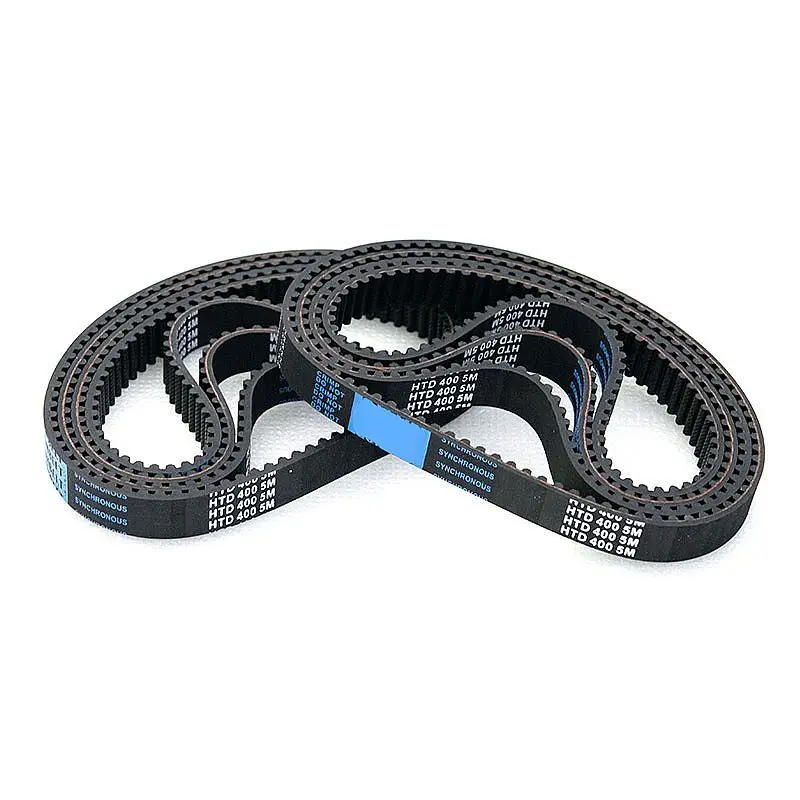

The synchronous belt is an endless belt with steel wire rope or glass fiber as the strength layer and covered with polyurethane or neoprene rubber....
The synchronous belt is an endless belt with steel wire rope or glass fiber as the strength layer and covered with polyurethane or neoprene rubber. The inner circumference of the belt is toothed to mesh with the toothed pulley. When the synchronous belt is driven, the transmission ratio is accurate, the force on the shaft is small, the structure is compact, the oil resistance is good, the wear resistance is good, and the anti-aging performance is good. The general operating temperature is -20°C-80°C, v<50m/s, P<300kw, i<10, it can also be used for low-speed transmission for synchronous transmission.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
| Name | Trapezoidal Tooth Timing Belt/Synchronous Belt | Arc Tooth Timing Belt/Synchronous Belt |
| Series | T/AT | HTD/STD/GT/PM |
| Material | Neoprene/Polyurethane | Neoprene/Polyurethane |
| Tooth Shape | MXL/XL/L/H/T5/T10/T20/T2.5/T5/T10/T20/AT5/AT10/AT20/2M/3M/5M/8M/ 14M/S2M/S3M/S5M/S8M/S14M/3GT/8YU/P2M/P3M/P5M/P8M/2GT/3GT/5GT |
MXL/XL/L/H/T5/T10/T20/T2.5/T5/T10/T20/AT5/AT10/AT20/2M/3M/5M/8M/ 14M/ S2M/S3M/S5M/S8M/S14M/3GT/8YU/P2M/P3M/P5M/P8M/2GT/3GT/5GT |
| Core Wire Material | Fiberglass/steel/Kevlar wire | Fiberglass/steel/Kevlar wire |
| Pitch | 2.032/5.08/9.525/12.7/2.5/5/10/20//5/10/20/2/3/5/8/14 | 2.032/5.08/9.525/12.7/2.5/5/10/20//5/10/20/2/3/5/8/14 |
| Operating Temperature | -20°~80° | -20°~80° |
Keywords : synchronous belt/timing belt/timing belt price/timing belt replacement/types of timing belt/at10 belt/belt mxl/car timing belt/sync belt/timing belt cost/industrial timing belt/htd timing belt/continental timing belt/timing belt tensioner price/
Material: Rubber, EPDM
Size : Standard/Processing Customized
Features:
- Accurate transmission, no slippage during operation, and constant transmission ratio;
- The transmission is stable, with buffer and vibration reduction capabilities, and low noise;
- The transmission efficiency is high, up to 0.98, and the energy saving effect is obvious;
- Easy maintenance, no lubrication, low maintenance cost;
- The speed ratio range is large, generally up to 10, the linear speed can reach 50m/s, and it has a large power transmission range, which can reach several watts to hundreds of kilowatts;
- It can be used for long-distance transmission, and the center distance can reach more than 10m.
- Compared with V-belt transmission, the preload is small, and the load on the shaft and bearing is small
The models processed by our company are: MXL/XL/L/H/S2M/S3m/5M/S8M/S14M/2M/3m/T5/T10
| Type |
Tooth
Pitch |
2th | Lr | h | H | Rr | Ra | Unit Weight |
| g/m(Width:10mm) | ||||||||
|
MXL
(Rubber) |
2.032 | 40 | 1.14 | 0.51 | 1.22 | 0.13 | 0.13 | 11 |
| XL | 5.08 | 50 | 2.57 | 1.27 | 2.27 | 0.38 | 0.38 | 21 |
| L | 9.525 | 40 | 4.65 | 1.91 | 3.61 | 0.51 | 0.51 | 32.0 |
| H | 12.7 | 40 | 6.12 | 2.29 | 4.3 | 1 | 1 | 40 |
| Type | Tooth Pitch | H | h | L |
Unit Weight g/m
(width:10mm) |
| T5 | 5 | 2.2 | 1.2 | 1.8 | 20 |
| T10 | 10 | 4.5 | 2.5 | 3.5 | 42 |
- Semiconductors, automobiles, mobile phones, electronics, robotics.
Our company is a manufacturer of R&D and manufacturing of timing belts, timing pulleys, timing pulleys, rubber timing belts, PU timing belts, polyurethane timing belts, double-sided tooth timing belts, toothed belts, PVC conveyor belts, sheet base belts, etc. It has been committed to the research and development and production of China's transmission products, and fully promotes the development of China's synchronous transmission ![Timing belt 8]()
