Hardware Stamping Parts Manufacturers To Undertake Vc Soaking Plate Vc Soaking Plate For Mobile
5.0
Model Number:
electrical conductive foam gasket
Samples:
$30.0/piece | Min. order : 1 piece
Shipping:
Support Sea freight
Place of Origin:
China
Payments:
L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA
Lead Time:
1-2(pieces):3(days),3-10(pieces):5(days),11-100(pieces):7(days),>100(pieces):To be negotiated(days)
Customization:
Customized packaging (Min. Order: 2000 sets),Customized logo (Min. Order: 2000 sets),Graphic customization (Min. Order: 2000 sets)
Brand Name:
Konlida
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Classification
Metal Mesh/Powder Sintered/Etching Type VC Soaking Plate
Equivalent thermal conductivity
5000~100000W/(m*K
Process type
Chemical etching
Processing
OEM /ODM
nsulation Resistance
MIn1000
Color
gold silver
Product name
Soaking plate
Tensile Strength
customize
Rated Voltage
220V
Application
High Voltage, ESD, EMI, EMC shield field Mobile Phone, PDA, Note-PC,
Material
Metal, copper
Place of Origin
Jiangsu, China
Type
Other, Metal
Quick Detail
Using the latest technology and high-grade materials, VC Soaking Plate is manufactured in compliance with guidelines of fine production methods. The product undergoes strict QC procedures including process control, random inspection, and routine inspection. These inspections prove to be helpful to the quality of the product. VC Soaking Plate is one of the main products of With wide application, our product can be applied to different industries and fields. And it is deeply loved and favored by customers. The product is well-known and widely accepted for its great economic benefits.
VC Soaking Plate
VC soaking plate, full name is Vapor-Chamber soaking plate. VC soaking plate is a new type of high-efficiency thermal conductive material that uses the phase change of the working medium to quickly transfer heat.

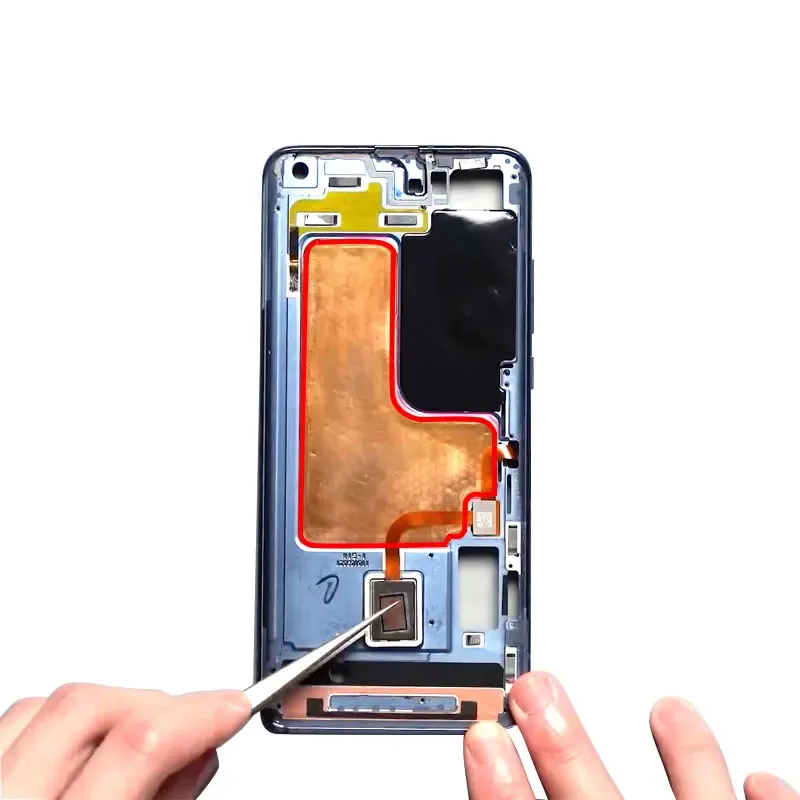

The rapid phase change has great heat transfer efficiency, and it has become a trend to use VC soaking plates to solve the heat dissipation problem. The ultra-thin VC soaking plate can be easily applied to ultra-thin environments. It is attached to the heating unit with thermal grease to disperse the heat evenly and then transfer it to the backplane or other heat dissipation areas, thereby reducing the working temperature of the core areas.
Features:
1. Excellent temperature uniformity performance
2. Excellent thermal conductivity, the thermal conductivity along the conduction direction can reach 5000~100,000W/(m*K)
3. Ultra-thin VC soaking plate can be prepared for ultra-thin environment, the thinnest can reach 0.25mm
4. Excellent EMI shielding effectiveness
5. Meet RoHS standards
The thickness of the VC soaking plate varies depending on the application. The common soaking plate thickness for computer radiators is 3.5~4.2mm, while the thickness of the soaking plate used for ultra-thin electronic devices such as mobile phones is only about 0.3mm.Suzhou Konlida Corrosion VC Etching Soaking Plate Soaking Pipe Processing
Product Description
Product | Thermal Conductivity W(m*K) | Thickness | Operating Temperature | Environmental Restrictions | processing difficulty | ||||||||
Metal sheet | Red copper | Isotropism | 401 | Min 0.03mm | With the increase of temperature, the thermal conductivity first increases and then decreases | Some metals are not resistant to oxidation and corrosion | Low | ||||||
Brass | 118 | ||||||||||||
Aluminum | 218 | ||||||||||||
Iron | 42-90 | ||||||||||||
Graphite based materials | Natural graphite | X-Y | 300-700 | X-Z | 15-20 | Min 0.03mm | With the increase of temperature, the thermal conductivity decreases | Oxidation resistance | Low | ||||
Artificial graphite | 700-1600 | 15-20 | Min 0.017mm | Medium | |||||||||
Graphene film | 15-20 | 15-20 | 0.35mm | Extremely high | |||||||||
VC heat pipe | Conduction direction 5000-100,000 | 2-5mm | 0-100 | Red Copper, brass are not resistant to oxidation and corrosion, it has a certain oxidation resistance after surface treatment | High | ||||||||
VC soaking plate | (easily affected by steam chamber capacity, metal material, vacuum degree and manufacturing process) (compared with heat pipe, VC soaking plate has larger heat transfer area and better uniform temperature performance) | 3.5-4.2mm (The ultra-thin type can reach 0.3mm, but the thermal conductivity will decrease) | High | ||||||||||
Best storage conditions: 23±2℃ 65± 5% RH indoor environment, 1 year of quality guarantee period after manufacturing
Application
Use for equipment, ESD, EMI, EMC shield field Mobile Phone, PDA, Note-PC, Digital camera
LCD, PDP, Set-top Box.Suzhou Konlida Corrosion VC Etching Soaking Plate Soaking Pipe Processing
Factory
Suzhou Konlida Precision Electronic Co.,Ltd.
Established in 2006, the headquarter is in suzhou. KONLIDA is specialized in designing and manufacturing of high quality EMC/Die-cutting/thermal control product/VC soaking plate and solution .Suzhou Konlida Corrosion VC Etching Soaking Plate Soaking Pipe Processing
1.KONLIDA is a group enterprise that concentrates on providing one-stop service of VC soaking plate to customers. Suzhou Konlida Corrosion VC Etching Soaking Plate Soaking Pipe Processing
2.KONLIDA has been providing OEM and ODM service ,and we will be persistent to make customers satisfied. Suzhou Konlida Corrosion VC Etching Soaking Plate Soaking Pipe Processing
3.KONLIDA will improve the professional skills continuously, adhere to the concept "integrity, service, profession and innovation",and make you get the highest benefit with the minimal cost.KONLIDA is looking forward to cooperate with you for a win-win business relationship.
Established in 2006, the headquarter is in suzhou. KONLIDA is specialized in designing and manufacturing of high quality EMC/Die-cutting/thermal control product/VC soaking plate and solution .Suzhou Konlida Corrosion VC Etching Soaking Plate Soaking Pipe Processing
1.KONLIDA is a group enterprise that concentrates on providing one-stop service of VC soaking plate to customers. Suzhou Konlida Corrosion VC Etching Soaking Plate Soaking Pipe Processing
2.KONLIDA has been providing OEM and ODM service ,and we will be persistent to make customers satisfied. Suzhou Konlida Corrosion VC Etching Soaking Plate Soaking Pipe Processing
3.KONLIDA will improve the professional skills continuously, adhere to the concept "integrity, service, profession and innovation",and make you get the highest benefit with the minimal cost.KONLIDA is looking forward to cooperate with you for a win-win business relationship.
