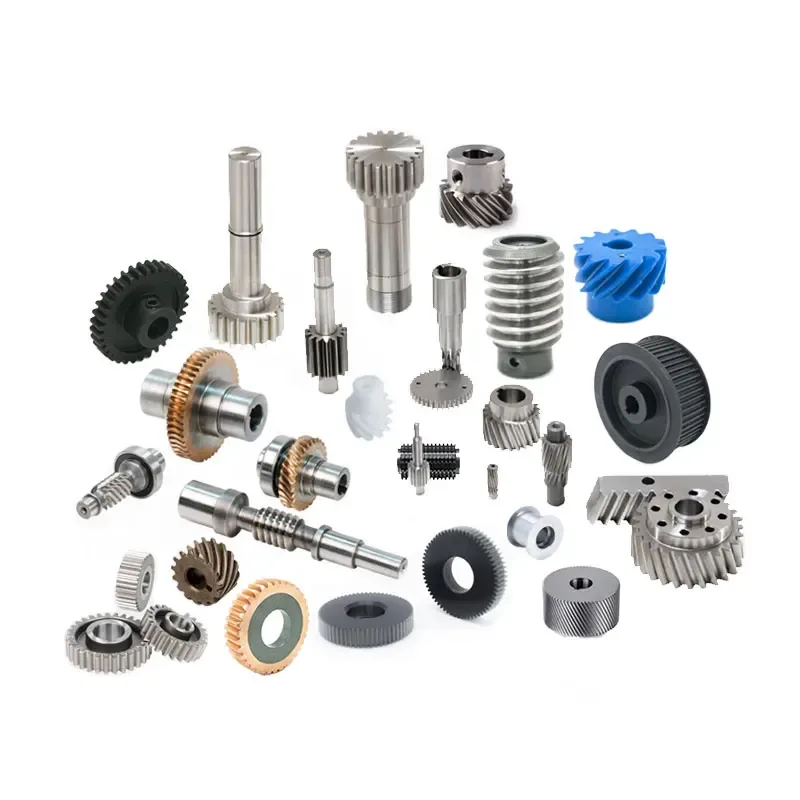

Product Overview
Worm Gear is manufactured using modern management tools and technology. The outstanding features of the product are the top quality and long service life. has a creative and professional Worm Gear design team and skilled staff.
Transmission type | ZA type (Archimedes) | ||
Number of Turbine Teeth | Z | 72 | |
Turbine Face Modulus | M | 1.6 | |
Dividing Circle Diameter | D | 115.2 | |
Helix Angle | β | 14.25° | |
Pressure Angle | α | 20° | |
Modification Coefficient | x | 0.5 | |
Number of Worm Heads | Z1 | 9 | |
Center Distance | a | 73.8±0.015 | |
Vortex Direction | Right | ||
Accuracy Class | Level 6 | GB10089 | |
Transmission Type | ZA Type (Archimedes) | Transmission Type | ZA Type | ||||
Number of Paired Screw Heads | Z1 | 1 | Number of worm heads | Z1 | 1 | ||
Turbine Face Modulus | M | 2.5 | Modulus | Mt | 2.5 | ||
Lead Angle | γ | 2°51 43.2〞 | Lead angle | γ | 3°34＇35〞（3.5763°） | ||
Helix Direction | Right | ||||||
Axial Tooth Profile Angle of Worm | α | 20° | Helix direction | Right | |||
Number of Turbine Teeth | Z2 | 35 | Axial tooth profile angle of screw rod | α | 20° | ||
Center Distance | a | 68.75±0.02 | Number of matched turbine teeth | Z2 | 50 | ||
Turbine Displacement Coefficient | X2 | 0 | Center distance | a | 82.5±0.02 | ||
Accuracy Class | Turbine6e/GB10098 | Addendum diameter | da1 | ∅45 | |||
Pairing Worm Drawing Number | GY455-5-32 | Dividing circle diameter | d1 | ∅40 | |||
Turbine Pitch Cumulative Tolerance | Fp | 0.027 | Root circle diameter | df1 | ∅34 | ||
Pitch Limit Deviation | fpt | ±0.0085 | |||||
Company Information
referred to as is located in and is a company mainly engaged in production, processing and sales of Our professional service team includes a sound after-sales service system. So we are able to solve all kinds of problems and their worries.
Our products are reliable in quality, various in type and affordable in price. Customers in need are welcomed to contact us. We sincerely hope to reach friendly cooperation, common development and mutual benefit with you!
