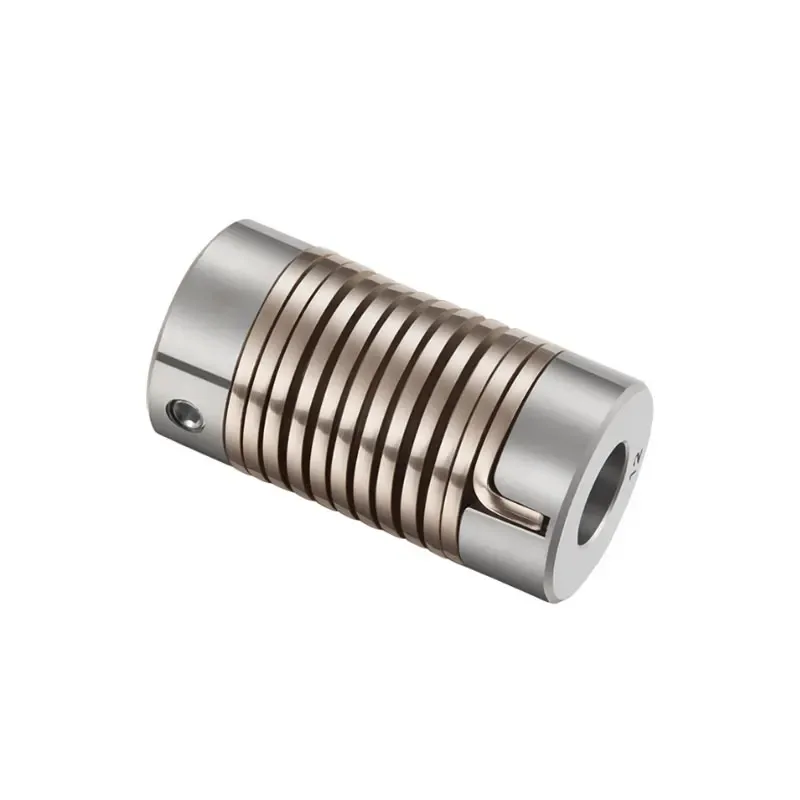

High Quality Flexible Spring Coupling Encoder Coupling
5.0
Shipping:
Support Sea freight
Place of Origin:
China
Payments:
L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA
Lead Time:
1-10000(pieces):30(days),>10000(pieces):To be negotiated(days)
Customization:
Customized packaging (Min. Order: 1000 sets),Customized logo (Min. Order: 1000 sets),Graphic customization (Min. Order: 1000 sets)
Brand Name:
KONLIDA
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Features 2
Good softness,not easy to break
Features 1
Design for encoder
Body Material
Aluminum
OEM & ODM
Acceptable
Surface Treatment
Oxidation
Standard or Nonstandard
Standard
Flexible or Rigid
Flexible
Structure
Universal, Encoder
Customized support
OEM, ODM
Applicable Industries
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Food Shop, Printing Shops, Energy & Mining
Warranty
1 years
Color
Custom Requirement
Product name
Flexible Coupling 5*8
Material
Aluminium, Plastic
Place of Origin
SUZHOU
Quick Detail
Our has the advantages of fine workmanship, scientific and reasonable design and affordable price. It is a quality product worthy of choice. is delicately crafted by our adept professionals by using modern technology. The quality standards of this offered products maintain consistent with adequate testing facilities. is widely used in the production, such as manufacturing, processing, and packaging of various types of food. After-sales service has gradually become a very important part of product marketing in characteristic.
Product Description
Features:
● Bushings made of Zinc alloy● Elastomer made of Spring steel
● Simple structure,flexible, low inertia,allowing angular
misalignments
● The installation is easy, the spring steel is more efficiently
absorbed parallelangular misalignments and shaft end-play
● Applicable to micro-motorencoder
● Setscrew type.
High Quality Flexible Spring Coupling Encoder Coupling
Specification
Dimension:(Unit:mm)
Model Parameter | Common Bore Diameter d1,d2 | ΦD | L | LF | F | M | Tightening Screw Torque (N.M) | |||||||
KLD-16X25 | 5,6,6.35,7,8,9,10 | 16 | 25 | 11.45 | 4.0 | M3 | 0.7 | |||||||
KLD-16X35 | 5,6,6.35,7,8,9,10 | 16 | 35 | 12.5 | 3.8 | M4 | 1.7 | |||||||
KLD-26X50 | 6,6.35,7,8,9,10,11,12,12.7,14 | 26 | 50 | 17 | 5.0 | M5 | 4 | |||||||
Processed with H7 standard tolerance. The inner diameter size marked in the table is for reference only. The inner diameter required by the customer, please contact the salesman for detailed parameters. | ||||||||||||||
Specifications(Unit:mm)
Model Parameter | Rated Torque(N.m) | Allowable Eccentricity (mm) | Allowable Deflection Angle (°) | Allowable Axial Deviation (mm) | Maximum Speed (rpm) | Moment of Inertia (N· m) | Coupling Weight (g) | |||||||
KLD-16X25 | 0.5 | 1 | 8 | ±1.0 | 3000 | 1.02x10-6 | 30 | |||||||
KLD-16X35 | 0.5 | 1 | 8 | ±1.0 | 3000 | 1.02x10-6 | 70 | |||||||
KLD-26X50 | 1.5 | 3 | 8 | ±1.0 | 3000 | 1.15x10-5 | 130 | |||||||
Processed with H7 standard tolerance. The inner diameter size marked in the table is for reference only. The inner diameter required by the customer, please contact the salesman for detailed parameters. | ||||||||||||||
Application
It is widely used in CNC machine tools, laser cutting machines, ball screws, module slides, electronic automation equipment and other fields.
Packaging:Jaw Coupling D20 L25mm Coupling Stepper Motor 5mm 8mm Plum Shaped Clamp Shaft Coupler For Servo Motor
1. Commerial Packaging: PE bags,PP bags,Bubble bags,Carton box,Wooden box for safe package.
2. According to clients' requirementsHigh Quality Flexible Spring Coupling Encoder Coupling
Factory
Suzhou Konlida Precision Electronic Co., Ltd.Established in 2006, the headquarter is in suzhou. KONLIDA is a specialized supplier of a full range of chains, sprockets, gears, gear racks, v belt pulley, timing pulley, V-belts, couplings, machined parts and so on.
Professional production of various process parts, can make a variety of complex process products.You can customize various products accordung to your needs.
One stop service ,source factory ,Suppprts small batch custmizatiom,No worries about delivery,Quality assurance after-sale guarantee.
Our Team
FAQ
Q1. Can I get 1 or more samples?Coupler Zinc Alloy Flexible Shaft Couplings For Micro Motor And Encoder Coupling
A: Yes,Sample orders welcomed. Low amount free samples could be provided when we have stocks.
High Quality Flexible Spring Coupling Encoder Coupling
Q2. OEM/ODM accepted?45# Steel Plum Type High Rigid Coupling With Keyway
A: Yes, Please send you new product drawings or sample to us if you have, and we can custom-made as your required. We will also provide professional advices of the products to make the design to be maximize the performance.
High Quality Flexible Spring Coupling Encoder Coupling
Q3. If you can not find the product on our website,how do you do?
A: Please send us inquiry with product pictures and drawings by email or other ways you prefer, we'll check if we could produce.High Quality Flexible Spring Coupling Encoder Coupling
Company Advantages
located in specializes in the production and processing of During the process of development, our company adopts advanced management concept in accordance with standards, science and large-scale. Besides, we use effective modern management methods to continuously pursue excellence and innovation, so as to create competitive advantages for our company. With a focus on talents cultivation, has an elite team equipped with abilities to create, learn and execute. According to different needs of customers, is capable of providing reasonable, comprehensive and the most cost-effective solutions for customers.
Compared with similar products, produces that are more fashionable, more environmentally friendly and more energy-saving. Feel free to contact us!
