High Rigidity Stainless Steel Flexible Clamp Series Diameter 14.5mm Length 18.4mm Shaft Oldham Coupling
5.0
Model Number:
CNC Shaft couples flexible
Samples:
$21.01/piece | Min. order : 1 piece
Shipping:
Support Sea freight
Place of Origin:
China
Payments:
L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA
Lead Time:
1-10000(pieces):30(days),>10000(pieces):To be negotiated(days)
Customization:
Customized packaging (Min. Order: 1000 sets),Customized logo (Min. Order: 1000 sets),Graphic customization (Min. Order: 1000 sets)
Brand Name:
KONLIDA
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Features 2
Zero backlash,easy installation
Features 1
Bushings made of High-strength aluminum alloy
Body Material
Aluminum
OEM & ODM
Acceptable
Surface Treatment
Oxidation
Standard or Nonstandard
Standard
Flexible or Rigid
Flexible
Structure
Universal, Oldham, Jaw/Spider
Customized support
OEM, ODM
Applicable Industries
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Food Shop, Printing Shops, Energy & Mining
Warranty
1 years
Color
As photo
Product name
Oldham Coupler
Material
Aluminium, Aluminium
Place of Origin
SUZHOU
Quick Detail
keeps pace with the development trend of the industry. We continuously provide high-quality and comprehensive services with the market as the guide and technology as the motivation. The product enjoys a wide reputation in the industry for good quality, favorable price, and high cost performance. is manufactured using sophisticated manufacturing facilities. An optimal system is established in order to satisfy customer demands 100%. is widely used in automobiles, motorcycles, tractors, diesel engines and other products. The product has got great market attention and will be more applied in the market in the future.
Product Description
Features:
● The shaft sleeve is made of high-strength aluminum alloy. ● Colloidal material adopts imported PA66,which has good wear. resistanceCorrosion resistance and electrical insulation.
● Sliding design compensates radial and angular deviation more effectively .
● Removable design for easy installation.
● Clamping screw tightening method.

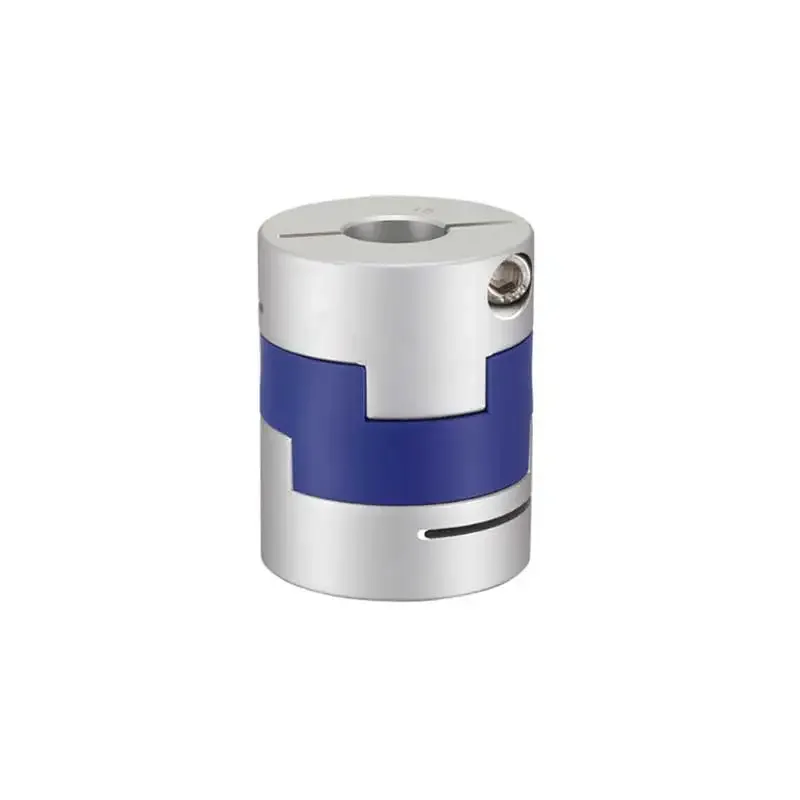

Shaft Coupling Oldham High Rigidity Stainless Steel Flexible Clamp Series Diameter 14.5mm Length 18.4mm
Specification
Dimension:(Unit:mm)
Model Parameter | Common Bore Diameter d1,d2 | ΦD | L | LF | LP | F | M | Tightening Screw Torque (N.M) | ||||||||
KLD-16X29 | 4,5.6,6.35, | 16 | 29 | 12.5 | 12 | 3 | M2.5 | 0.8 | ||||||||
KLD-20X33 | 5,6,6.35,7,8 | 20 | 33 | 14.1 | 12.7 | 3.8 | M2.5 | 0.8 | ||||||||
KLD-25X39 | 5.6,6.35,8,9,9.525,10,11,12 | 25 | 39 | 16.9 | 17.7 | 3.9 | M3 | 1.2 | ||||||||
KLD-32X45 | 5,6.8,9,9.525,10,11,12,12.7,14,15,16 | 32 | 45 | 20 | 20 | 4.5 | M4 | 2.5 | ||||||||
KLD-40X50 | 8,9,9.525,10,11,12,14,15,16,17,18,19 | 40 | 50 | 23 | 20.3 | 5.5 | M5 | 5 | ||||||||
KLD-44X46 | 8,9,9.525,10,11,12,,14,15,16,17,18,19,20,22, | 44 | 46 | 20.7 | 18.4 | 7 | M5 | 5 | ||||||||
KLD-50X53 | 10,11,12.7,14,15,16,17,18,19,20,22,24 | 50 | 53 | 24.2 | 22.35 | 7.5 | M6 | 8 | ||||||||
KLD-50X58 | 10,11,12.7,14,15,16,17,18,19,20,22,24 | 50 | 58 | 26.5 | 22.35 | 6.3 | M6 | 8 | ||||||||
KLD-55X57 | 10,11,12.7,14,15,16,17,18,19,20,22,24,25,28 | 55 | 57 | 26.2 | 25.8 | 6.3 | M6 | 8 | ||||||||
KLD-63X71 | 14,15,16,17,18,19,20,22,24,25,28,30,32 | 63 | 71 | 32.8 | 26.2 | 7.8 | M8 | 20 | ||||||||
KLD-70X77 | 14,15,16,17,18,19,20,22,24,25,28,30,32,35,38 | 70 | 77 | 32 | 25 | 7.7 | M8 | 20 | ||||||||
Processed with H7 standard tolerance. The inner diameter size marked in the table is for reference only. The inner diameter required by the customer, please contact the salesman for detailed parameters. | ||||||||||||||||
Specifications(Unit:mm)
Model Parameter | Rated Torque(N.m) | Allowable Eccentricity (mm) | Allowable Deflection Angle (°) | Allowable Axial Deviation (mm) | Maximum Speed (rpm) | Static Torsional Stiffness (N· m/rad) | Moment of Inertia (N· m) | Coupling Weight (g) | ||||||||
KLD-16X29 | 0.7 | 0.8 | 3 | ±0.2 | 9000 | 30 | 3.5x10-7 | 12 | ||||||||
KLD-20X33 | 1.2 | 1.2 | 3 | ±0.2 | 7000 | 58 | 1.5x10-6 | 19 | ||||||||
KLD-25X39 | 2 | 1.6 | 3 | ±0.2 | 6000 | 130 | 3.2x10-6 | 35 | ||||||||
KLD-32X45 | 4.5 | 2 | 3 | ±0.2 | 4800 | 270 | 1.5x10-5 | 67 | ||||||||
KLD-40X50 | 9 | 2.4 | 3 | ±0.2 | 3600 | 520 | 4.2x10-5 | 114 | ||||||||
KLD-44X46 | 12 | 2.5 | 3 | ±0.2 | 3500 | 800 | 4.5x10-5 | 140 | ||||||||
KLD-50X53 | 19 | 2.6 | 3 | ±0.2 | 3000 | 800 | 1.0x10-4 | 190 | ||||||||
KLD-50X58 | 19 | 3 | 3 | ±0.2 | 3000 | 800 | 1.1x10-4 | 215 | ||||||||
KLD-55X57 | 25 | 3.2 | 3 | ±0.2 | 3000 | 900 | 1.3x10-5 | 260 | ||||||||
KLD-63X71 | 33 | 3 | 3 | ±0.2 | 1200 | 1200 | 3.5x10-4 | 455 | ||||||||
KLD-70X77 | 56 | 3.5 | 3 | ±0.2 | 1260 | 1260 | 4.1x10-4 | 520 | ||||||||
Remarks: The above inertia moment and various technical parameters are measured from the maximum aperture as the standard. The maximum rated torque is related to the durability of the coupling itself. The larger the outer diameter, the greater the force,and the smaller the outer diameter is. higher speed. | ||||||||||||||||
Application
Packaging:Jaw Coupling D20 L25mm Coupling Stepper Motor 5mm 8mm Plum Shaped Clamp Shaft Coupler For Servo Motor
1. Commerial Packaging: PE bags,PP bags,Bubble bags,Carton box,Wooden box for safe package.
2. According to clients' requirements.Shaft Coupling Oldham High Rigidity Stainless Steel Flexible Clamp Series Diameter 14.5mm Length 18.4mm
