High-strength Aluminum Alloy Screw Thread Setscrew Coupling Series D12 L18.5 Flexible Shaft Coupling 2mm~6.35mm
5.0
Shipping:
Support Sea freight
Place of Origin:
China
Payments:
L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA
Lead Time:
1-10000(pieces):30(days),>10000(pieces):To be negotiated(days)
Customization:
Customized packaging (Min. Order: 1000 sets),Customized logo (Min. Order: 1000 sets),Graphic customization (Min. Order: 1000 sets)
Brand Name:
KONLIDA
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Diameter
16mm
Features 2
Zero backlash,suitable for forward reverse
Features 1
Design for encoder,stepmotor
Body Material
Aluminum alloy
OEM & ODM
Acceptable
Surface Treatment
Oxidation
Standard or Nonstandard
Standard
Flexible or Rigid
Flexible
Structure
Universal
Customized support
OEM, ODM
Applicable Industries
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Food Shop, Printing Shops, Energy & Mining
Warranty
1 years
Length
17.4mm
Product name
Flexible Coupling 5*8
Application
Industrial Equipment
Material
Aluminium, Aluminium
Place of Origin
SUZHOU
Quick Overview
Diverse in type, multiple in specification and reliable in quality, are solid and durable. The outline of deserves same attention as material in We are striving forward to try to achieve the great performance of to make it more practical for customers. The product is available at a rather competitive price, allowing it to get a wider application in the market.
Product Description
Features:

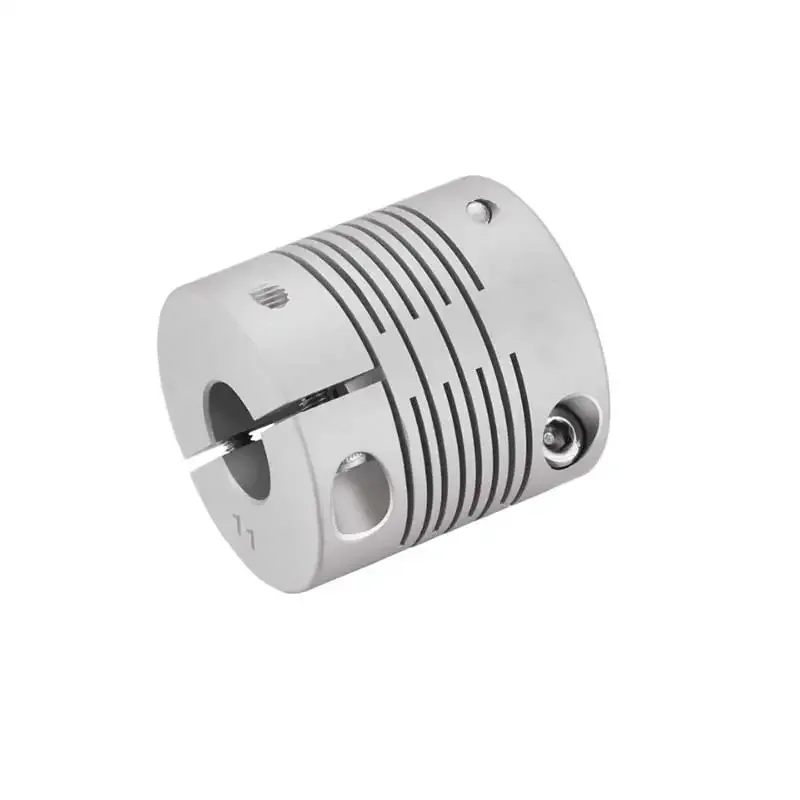

● Integrated structure, the overall use of high-strength alu minum alloy material .● Elasticity compensates radial,angular and axial deviations.
● Shaft and axial connection without gaps suitable for for
ward and reverse rotation.
● Commonly used in encodersstepper motors
●Tightening method of positioning screw.
Specification
Dimension:(Unit:mm)
Model parameter | Common bore diameter d1,d2 | ΦD | L | L1 | L2 | F | M | Tightening screw torque (N.M) | ||||||||
KLD-16X17.4 | 3,4.5,6, | 16 | 17.4 | 0.55 | 1.18 | 3 | M3 | 0.7 | ||||||||
KLD-19X20 | 3,4,5,6,6.35,7,8 | 19 | 20 | 0.55 | 1.18 | 2.3 | M3 | 0.7 | ||||||||
KLD-24X25 | 4,5,6,6.35,7.8.9.10,11. | 24 | 25 | 0.55 | 1.49 | 4.25 | M4 | 1.7 | ||||||||
KLD-29X30 | 5,6,6.35,7,8,9,9.525,10,11,12,12.7 | 29 | 30 | 0.55 | 1.81 | 5.1 | M5 | 4 | ||||||||
KLD-34X35 | 8,9,9.525,10,11,12,12.7,14,15,16. | 34 | 35 | 0.8 | 2.09 | 5 | M5 | 4 | ||||||||
Processed with H7 standard tolerance. The inner diameter size marked in the table is for reference only. The inner diameter required by the customer, please contact the salesman for detailed parameters. | ||||||||||||||||
Specifications(Unit:mm)
Model parameter | Rated torque(N.m) | Allowable eccentricity (mm) | Allowable deflection angle (°) | allowable axial deviation (mm) | Maximum speed (rpm) | Static torsional stiffness (N· m/rad) | Moment of inertia (N· m) | Coupling weight (g) | ||||||||
KLD-16X17.4 | 0.75 | 0.05 | 0.5 | ±0.1 | 24000 | 200 | 2.8x10-7 | 7 | ||||||||
KLD-19X20 | 1.5 | 0.05 | 0.5 | ±0.1 | 20000 | 270 | 6.2x10-7 | 10 | ||||||||
KLD-24X25 | 2.2 | 0.05 | 0.5 | ±0.1 | 16000 | 790 | 2.0x10-6 | 22 | ||||||||
KLD-29X30 | 3 | 0.05 | 0.5 | ±0.1 | 13000 | 1400 | 5.2x10-6 | 40 | ||||||||
KLD-34X35 | 4.5 | 0.05 | 0.5 | ±0.1 | 11000 | 2200 | 1.1x10-5 | 64 | ||||||||
Remarks: The above inertia moment and various technical parameters are measured from the maximum aperture as the standard. The maximum rated torque is related to the durability of the coupling itself. The larger the outer diameter, the greater the force,and the smaller the outer diameter is. higher speed. | ||||||||||||||||
