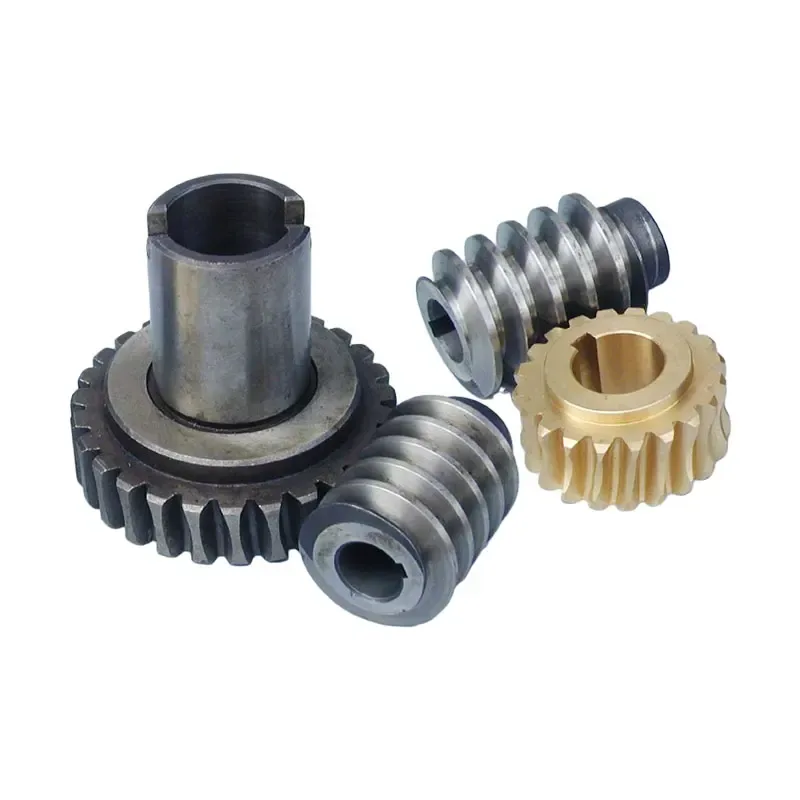

Worm Gear is one of the factors that emphasizes during material selection. Through the whole process of strict quality inspection, we ensure product quality to meet industry standards. Our Worm Gear meets the needs of multiple industries and fields. has a large showroom and a quality testing laboratory.
Transmission type | ZA type (Archimedes) | ||
Number of Turbine Teeth | Z | 72 | |
Turbine Face Modulus | M | 1.6 | |
Dividing Circle Diameter | D | 115.2 | |
Helix Angle | β | 14.25° | |
Pressure Angle | α | 20° | |
Modification Coefficient | x | 0.5 | |
Number of Worm Heads | Z1 | 9 | |
Center Distance | a | 73.8±0.015 | |
Vortex Direction | Right | ||
Accuracy Class | Level 6 | GB10089 | |
Transmission Type | ZA Type (Archimedes) | Transmission Type | ZA Type | ||||
Number of Paired Screw Heads | Z1 | 1 | Number of worm heads | Z1 | 1 | ||
Turbine Face Modulus | M | 2.5 | Modulus | Mt | 2.5 | ||
Lead Angle | γ | 2°51 43.2〞 | Lead angle | γ | 3°34＇35〞（3.5763°） | ||
Helix Direction | Right | ||||||
Axial Tooth Profile Angle of Worm | α | 20° | Helix direction | Right | |||
Number of Turbine Teeth | Z2 | 35 | Axial tooth profile angle of screw rod | α | 20° | ||
Center Distance | a | 68.75±0.02 | Number of matched turbine teeth | Z2 | 50 | ||
Turbine Displacement Coefficient | X2 | 0 | Center distance | a | 82.5±0.02 | ||
Accuracy Class | Turbine6e/GB10098 | Addendum diameter | da1 | ∅45 | |||
Pairing Worm Drawing Number | GY455-5-32 | Dividing circle diameter | d1 | ∅40 | |||
Turbine Pitch Cumulative Tolerance | Fp | 0.027 | Root circle diameter | df1 | ∅34 | ||
Pitch Limit Deviation | fpt | ±0.0085 | |||||
