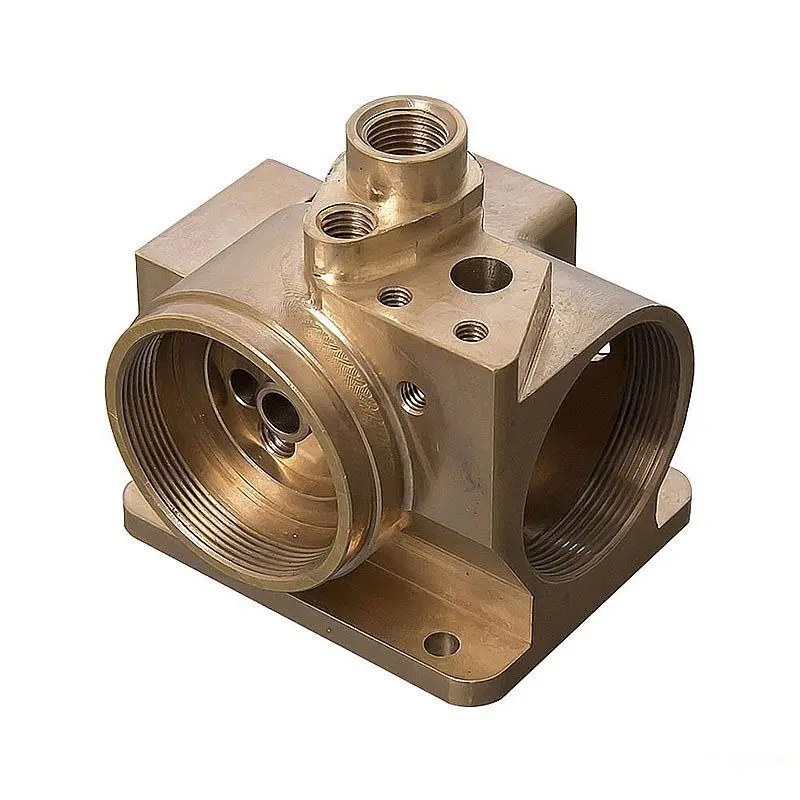

Four-way valve body

 Material: H62

Size: 48.5 *40.8 * 38.4mm

Keyword: CNC Machining Factory/CNC Lathe Services/Precision MachiningCheap China large factory company precision high speed titanium plastic aluminum steel brass metal aerospace 4 5Axis cnc lathe turning milling milled grinding cutting machining machined services for Car medical aerospace motorcycle auto aircraft robotics parts

Product Details:

• The four-way valve body product has four oil ports, and the H62 copper alloy is selected for CNC processing, so that the processed product can withstand a large load and the processing cost is low. The product is treated with deburring, sandblasting, and oxide film removal to make it easy to braze and weld, and more corrosion-resistant.

• The four-way valve body is mostly used in stress-bearing parts and has a wide range of applications. It can be used for air-conditioning parts, fan parts, refrigeration equipment, medical equipment parts, etc.

Technical Difficulties:

• The concentricity of fine holes on both sides of symmetry is 0.01mm and the center of the hole reaches the base the size of the plane is ±0.01mm, the accuracy of the process plan

Solution:

• Use fine positioning clamping and 4 axis processing technology to ensure form and position tolerance accuracy;

CNC Machining Application:

• CNC machining is widely used throughout the aerospace, medical, automotive industries for its ability to rapidly manufacture precise parts in production-grade materials.

Typical CNC Parts:

• Housings and enclosures/Brackets/Fixtures for manufacturing/Gears and bearings/Internal mechanical components/Medical instrumentation

Advantages of CNC Machining:

• Precision and repeatability/Tight tolerances/Production-grade materials/Quick-turn parts within 1 day

Services:

• CNC machining (turning/milling)
• Sheet metal manufacturing
• Injection molding service
• 3D printing service

• Aluminum: AL 6061-T6, 6063, 7075-T etc
• Stainless Steel: 303, 304, 316L,17-4(SUS630) etc
• Steel: 4140, Q235, Q345B, 20#, 45# etc.
• Titanium: TA1,TA2/GR2, TA4/GR5, TC4, TC18 etc
• Brass: C36000 (HPb62), C37700 (HPb59), C26800 (H68), C22000(H90) etc
• Copper,Bronze, Magnesium Alloy, Delrin, POM, Acrylic, PC, etc.

Surface Finishing:

• Sandblasting, Anodize Color, Blackenning, Zinc/Nickl Plating, Polish,
• Power Coating, Passivation PVD, Titanium Plating, Electrogalvanizing,
• Electroplating Chromium, Electrophoresis, QPQ(Quench-Polish-Quench),
• Electro Polishing,Chrome Plating, Knurl, Laser etch Logo, etc.

Main Equipment:

• CNC Machining Center(Milling), CNC Lathe, Grinding Machining,
• Cylindrical Grinder Machine, Drilling Machine, Laser Cutting Machine,etc.

Drawing Format:

• STEP, STP, GIS, CAD, PDF, DWG, DXF etc or samples.

Tolerance:+/-0.01mm ~ +/-0.05mm

Surface Roughness:Ra 0.1~3.2

Inspection:

• Complete inspection lab with Micrometer, Optical Comparator, Caliper Vernier,CMM
• Depth Caliper Vernier, Universal Protractor, Clock Gauge, Internal Centigrade Gauge

Capacity:

• CNC Turning Work Range: φ0.5mm-φ150mm*300mm
• CNC Milling Work Range: 510mm*1020mm*500mm
