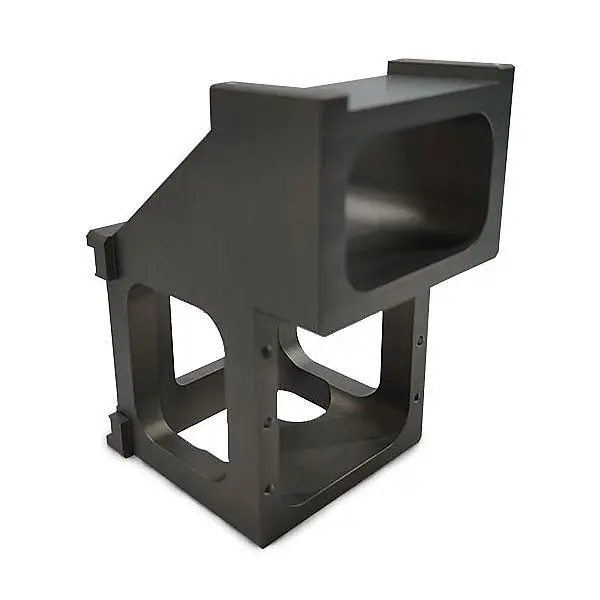

Special guide rail base

Material: 6061

Size: 200*160*85

Keywords: guide rail base hard anodic oxidation

Product Details:

• The product is hollow structure base, the contact surface of the guide rail is required to be within 0.006 flatness, the surface of the hard anodic oxidation treatment, so that the guide rail has a high surface hardness, but also maintain a good guide rail contact surface.

Processing Process:

• The use of 4-axis processing technology, avoid the manual repeatedly clamping position deviation risk, to ensure that the product position depends on the precision of the machine tool to complete.

Application Scope:

• Medical instrument base, assembly guide rail.

CNC Machining Application:

• CNC machining is widely used throughout the aerospace, medical, automotive industries for its ability to rapidly manufacture precise parts in production-grade materials.

Typical CNC Parts:

• Housings and enclosures/Brackets/Fixtures for manufacturing/Gears and bearings/Internal mechanical components/Medical instrumentation

Advantages of CNC Machining:

• Precision and repeatability/Tight tolerances/Production-grade materials/Quick-turn parts within 1 day

Keyword:CNC Machining Factory/CNC Lathe Services/Precision Machining Cheap China large factory company precision high speed titanium plastic aluminum steel brass metal aerospace 4 5Axis cnc lathe turning milling milled grinding cutting machining machined services for Car medical aerospace motorcycle auto aircraft robotics parts

 Services:

• CNC machining (turning/milling)
• Sheet metal manufacturing
• Injection molding service
• 3D printing service

Machining Material:

• Aluminum: AL 6061-T6, 6063, 7075-T etc
• Stainless Steel: 303, 304, 316L,17-4(SUS630) etc
• Steel: 4140, Q235, Q345B, 20#, 45# etc.
• Titanium: TA1,TA2/GR2, TA4/GR5, TC4, TC18 etc
• Brass: C36000 (HPb62), C37700 (HPb59), C26800 (H68), C22000(H90) etc
• Copper,Bronze, Magnesium Alloy, Delrin, POM, Acrylic, PC, etc.

Surface Finishing:

• Sandblasting, Anodize Color, Blackenning, Zinc/Nickl Plating, Polish,
• Power Coating, Passivation PVD, Titanium Plating, Electrogalvanizing,
• Electroplating Chromium, Electrophoresis, QPQ(Quench-Polish-Quench),
• Electro Polishing,Chrome Plating, Knurl, Laser etch Logo, etc.

Main Equipment:

• CNC Machining Center(Milling), CNC Lathe, Grinding Machining,
• Cylindrical Grinder Machine, Drilling Machine, Laser Cutting Machine,etc.

Drawing Format:

• STEP, STP, GIS, CAD, PDF, DWG, DXF etc or samples.

Tolerance: +/-0.01mm ~ +/-0.05mm

Surface Roughness: Ra 0.1~3.2

Inspection:

• Complete inspection lab with Micrometer, Optical Comparator, Caliper Vernier,CMM
• Depth Caliper Vernier, Universal Protractor, Clock Gauge, Internal Centigrade Gauge

Capacity:

• CNC Turning Work Range: φ0.5mm-φ150mm*300mm
• CNC Milling Work Range: 510mm*1020mm*500mm
