Slide structures

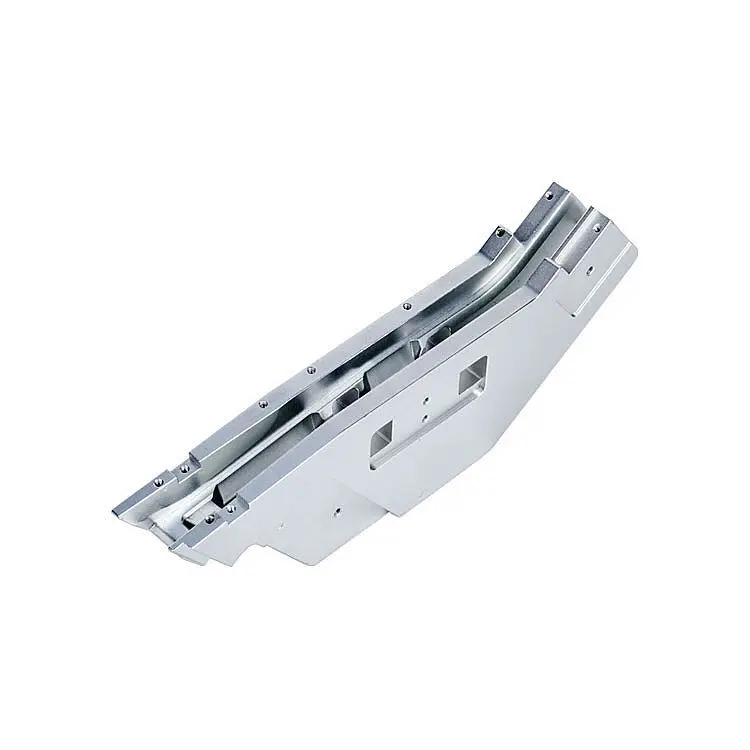

Customer requirements for aluminum alloy slide products generally include a bright polished surface, anodic oxidation, left and right symmetry of conical surfaces, mirror polishing of the inner surface of the groove and high assembly accuracy. In this example, the customer required an assembly accuracy of 0.03mm and a polished curved surface. Konlida can manufacture any aluminum product in any quantity. If you would like more examples please contact us.
Material: AL5052
Size: 205 * 150 * 33.5mm
Keywords: mirror polishing, deep and narrow cavity
Details: The structural parts of the slideway have a left-right symmetrical structure. The 5052 aluminum alloy material is selected for CNC processing, so that the product has good forming and processing performance, fatigue resistance, corrosion resistance, weldability and plasticity. The surface is mirror polished and anodized as a whole, so that the surface of the processed product is bright and beautiful, and the corrosion resistance, wear resistance and hardness are further improved.
Usage: Aluminum slideway structural parts have a wide range of uses, and can be used for auto parts, motorcycle parts, mechanical parts, ship parts, medical equipment, sports equipment, scientific equipment, etc.
Technical difficulties:
- Curved surface connection without tool marks, deep and narrow cavity after processing deformation control technology.
Solution:
- Roughing and finishing with control and 4 axis and 5 axis Machining, to ensure the shape and position tolerance accuracy and joint without tool marks.
CNC Machining Application:
- CNC machining is widely used throughout the aerospace, medical, automotive industries for its ability to rapidly manufacture precise parts in production-grade materials.
Typical CNC Parts:
- Housings and enclosures/Brackets/Fixtures for manufacturing/Gears and bearings/Internal mechanical components/Medical instrumentation
Advantages of CNC Machining:
- Precision and repeatability/Tight tolerances/Production-grade materials/Quick-turn parts within 1 day
- Strong factory: The company was established in 2006, focusing on the R&D and production of electromagnetic shielding/thermal management products, as well as the machining and assembly services of high-quality precision parts. Now it has passed ISO9001 and ISO13485 certification! Reliable quality and competitive price
- Advanced production equipment: DMU/die-casting zinc alloy/FINUC CNC machining center. All equipment is imported from Japan and Germany.
- Complete testing equipment: various precision testing equipment: Japan Sanfeng internal hole meter, altimeter, runout meter, gear testing center, three coordinates. The measuring items include the tooth shape, tooth orientation, pitch, runout, and common normal of the gear. The measuring accuracy can reach ISO1.
- Rich production experience: the company has 30 R&D engineers and 37 core patents. The first time to provide customers with solutions.
- OEM: support customized products with drawings and samples, buyer design, and buyer label service.
- Fast quotation/fast response: 24-hour online service for 7 days, and the quotation will be replied to you within 24 working hours.
- Strict quality: the production is checked at all levels, and the QC fully inspects the delivery, including the test report, to protect your products.
- Fast delivery: more than 300 employees work in shifts 24 hours a day, usually 7-15 working days. The ease of product delivery determines the delivery date.
- CNC machining (turning/milling)
- Sheet metal manufacturing
- Injection molding service
- 3D printing service
- Aluminum: AL 6061-T6, 6063, 7075-T etc
- Stainless Steel: 303, 304, 316L,17-4(SUS630) etc
- Steel: 4140, Q235, Q345B, 20#, 45# etc.
- Titanium: TA1,TA2/GR2, TA4/GR5, TC4, TC18 etc
- Brass: C36000 (HPb62), C37700 (HPb59), C26800 (H68), C22000(H90) etc
- Copper,Bronze, Magnesium Alloy, Delrin, POM, Acrylic, PC, etc.
- Sandblasting, Anodize Color, Blackenning, Zinc/Nickl Plating, Polish,
- Power Coating, Passivation PVD, Titanium Plating, Electrogalvanizing,
- Electroplating Chromium, Electrophoresis, QPQ(Quench-Polish-Quench),
- Electro Polishing,Chrome Plating, Knurl, Laser etch Logo, etc.
- CNC Machining Center(Milling), CNC Lathe, Grinding Machining,
- Cylindrical Grinder Machine, Drilling Machine, Laser Cutting Machine,etc.
- STEP, STP, GIS, CAD, PDF, DWG, DXF etc or samples.
- Complete inspection lab with Micrometer, Optical Comparator, Caliper Vernier,CMM
- Depth Caliper Vernier, Universal Protractor, Clock Gauge, Internal Centigrade Gauge
- CNC Turning Work Range: φ0.5mm-φ150mm*300mm
- CNC Milling Work Range: 510mm*1020mm*500mm
