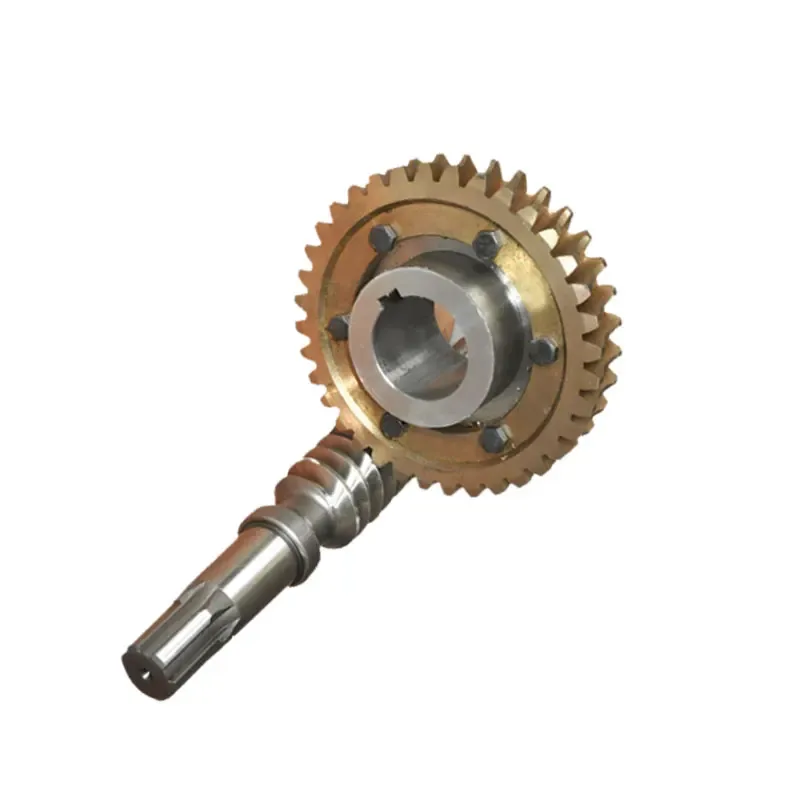

Worm Gear is high-quality and with an innovative design. The reliability of the product translates into a low cost of ownership. The Worm Gear managed by is widely used in industry. With significant economic benefits, the product has been widely found its applications in the industry.
Transmission type | ZA type (Archimedes) | ||
Number of Turbine Teeth | Z | 72 | |
Turbine Face Modulus | M | 1.6 | |
Dividing Circle Diameter | D | 115.2 | |
Helix Angle | β | 14.25° | |
Pressure Angle | α | 20° | |
Modification Coefficient | x | 0.5 | |
Number of Worm Heads | Z1 | 9 | |
Center Distance | a | 73.8±0.015 | |
Vortex Direction | Right | ||
Accuracy Class | Level 6 | GB10089 | |
Transmission Type | ZA Type (Archimedes) | Transmission Type | ZA Type | ||||
Number of Paired Screw Heads | Z1 | 1 | Number of worm heads | Z1 | 1 | ||
Turbine Face Modulus | M | 2.5 | Modulus | Mt | 2.5 | ||
Lead Angle | γ | 2°51 43.2〞 | Lead angle | γ | 3°34＇35〞（3.5763°） | ||
Helix Direction | Right | ||||||
Axial Tooth Profile Angle of Worm | α | 20° | Helix direction | Right | |||
Number of Turbine Teeth | Z2 | 35 | Axial tooth profile angle of screw rod | α | 20° | ||
Center Distance | a | 68.75±0.02 | Number of matched turbine teeth | Z2 | 50 | ||
Turbine Displacement Coefficient | X2 | 0 | Center distance | a | 82.5±0.02 | ||
Accuracy Class | Turbine6e/GB10098 | Addendum diameter | da1 | ∅45 | |||
Pairing Worm Drawing Number | GY455-5-32 | Dividing circle diameter | d1 | ∅40 | |||
Turbine Pitch Cumulative Tolerance | Fp | 0.027 | Root circle diameter | df1 | ∅34 | ||
Pitch Limit Deviation | fpt | ±0.0085 | |||||
