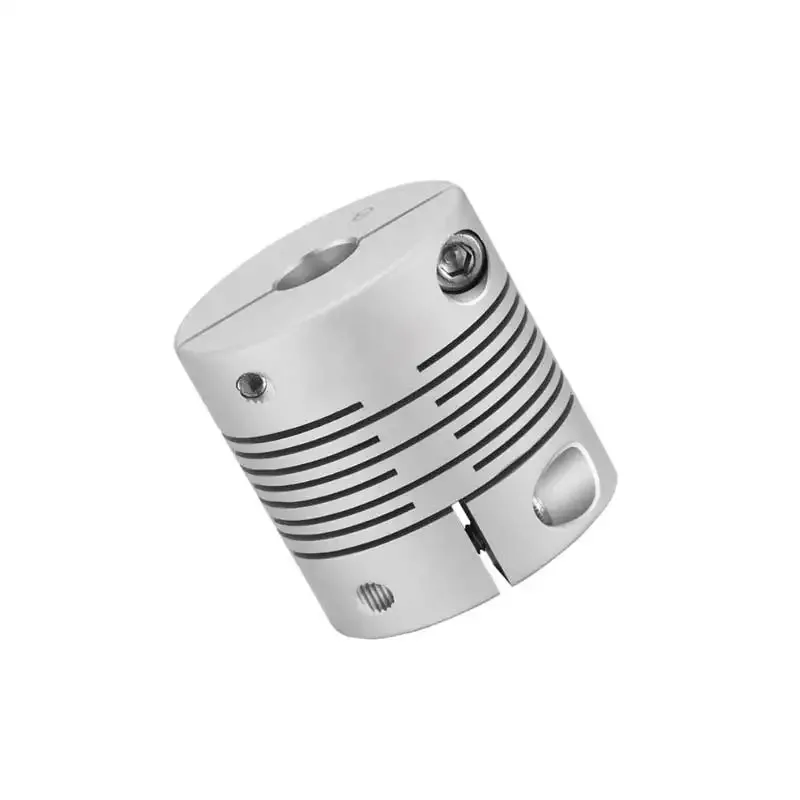

Servo Motor Coupling Generator Aluminum Alloy Parallel Wire Clamping Flexible Shaft Coupling Price
5.0
Samples:
$21.01/piece | Min. order : 1 piece
Shipping:
Support Sea freight
Place of Origin:
China
Payments:
L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA
Lead Time:
1-10000(pieces):15(days),>10000(pieces):To be negotiated(days)
Customization:
Customized packaging (Min. Order: 1000 sets),Customized logo (Min. Order: 1000 sets),Graphic customization (Min. Order: 1000 sets)
Brand Name:
KONLIDA
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Diameter
16mm
Features 2
Zero backlash,suitable for forward reverse
Features 1
Design for encoder,stepmotor
Body Material
Aluminum alloy
OEM & ODM
Acceptable
Surface Treatment
Oxidation
Standard or Nonstandard
Standard
Flexible or Rigid
Flexible
Structure
Universal
Customized support
OEM, ODM
Applicable Industries
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Food Shop, Printing Shops, Energy & Mining
Warranty
1 years
Length
17.4mm
Product name
Flexible Coupling 5*8
Application
Industrial Equipment
Material
Aluminium, Aluminium
Place of Origin
SUZHOU
Quick Detail
There has been a steady demand in our market for this unique design of Coupling. Delivering the quality product has always been our chief concern. Coupling is of excellent quality and is widely used in the industry. The effective management and inspection of production process enable Coupling produce with high quality.
Product Description
Features:
● Integrated structure,the overall use of high-strength aluminum alloy material.●Elasticity compensates radialangular and axial deviations.
●Shaft and axial connection without gaps suitable for for
ward and reverse rotation.
● Commonly used in servo,stepper motor
●Clamping screw tightening method.
Servo Motor Coupling Generator Aluminum Alloy Parallel Wire Clamping Flexible Shaft Coupling Price
Specification
Dimension:(Unit:mm)
Model Parameter | Common Bore Diameter d1,d2 | ΦD | L | L1 | L2 | F | M | Tightening Screw Torque(N.M) | ||||||||
KLD-16X17.4 | 3,4.5,6 | 16 | 17.4 | 0.55 | 1.18 | 3.0 | M2.5 | 1 | ||||||||
KLD-19X20 | 3,4,5,6,6.35,7,8 | 19 | 20 | 0.55 | 1.18 | 3.4 | M2.5 | 1 | ||||||||
KLD-24X25 | 4,5,6,6.35,7.8.9.10,11 | 24 | 25 | 0.55 | 1.49 | 3.78 | M3 | 1.5 | ||||||||
KLD-29X30 | 5,6,6.35,7,8,9,9.525,10,11,12,12.7 | 29 | 30 | 0.55 | 1.81 | 4.5 | M3 | 1.5 | ||||||||
KLD-34X35 | 8,9,9.525,10,11,12,12.7,14,15,16 | 34 | 35 | 0.8 | 2.09 | 5.1 | M3 | 1.5 | ||||||||
Specifications(Unit:mm) | ||||||||||||||||
Model Parameter | Rated Torque(N.m) | Allowable Eccentricity (mm) | Allowable Deflection angle (°) | Allowable Axial Deviation (mm) | Maximum Speed (rpm) | Static Torsional Stiffness (N· m/rad) | Moment of Inertia (N· m) | Coupling Weight (g) | ||||||||
KD-16X17.4 | 0.75 | 0.05 | 0.5 | ±0.1 | 8000 | 200 | 2.5x10-7 | 7 | ||||||||
KD-19X20 | 1.5 | 0.05 | 0.5 | ±0.1 | 8000 | 270 | 5.8x10-7 | 12 | ||||||||
KD-24X25 | 2.2 | 0.05 | 0.5 | ±0.1 | 6200 | 790 | 1.8x10-6 | 23 | ||||||||
KD-29X30 | 3 | 0.05 | 0.5 | ±0.1 | 5000 | 1400 | 5.2x10-6 | 41 | ||||||||
KD-34X35 | 4.5 | 0.05 | 0.5 | ±0.1 | 4300 | 2200 | 1.1x10-5 | 62 | ||||||||
Remarks: The above inertia moment and various technical parameters are measured from the maximum aperture as the standard. The maximum rated torque is related to the durability of the coupling itself. The larger the outer diameter, the greater the force,and the smaller the outer diameter is. higher speed. | ||||||||||||||||
Application
Packaging:Jaw Coupling D20 L25mm Coupling Stepper Motor 5mm 8mm Plum Shaped Clamp Shaft Coupler For Servo Motor
1. Commerial Packaging: PE bags,PP bags,Bubble bags,Carton box,Wooden box for safe package.
2. According to clients' requirements.Servo Motor Coupling Generator Aluminum Alloy Parallel Wire Clamping Flexible Shaft Coupling Price
Factory
Suzhou Konlida Precision Electronic Co., Ltd.Established in 2006, the headquarter is in suzhou. KONLIDA is a specialized supplier of a full range of chains, sprockets, gears, gear racks, v belt pulley, timing pulley, V-belts, couplings, machined parts and so on.
Professional production of various process parts, can make a variety of complex process products.You can customize various products accordung to your needs.
One stop service ,source factory ,Suppprts small batch custmizatiom,No worries about delivery,Quality assurance after-sale guarantee.
Our Team
FAQ
Q1. Can I get 1 or more samples?Gnd Coupling Shaft Flexible Gear Aluminum Electric High Rigidity Parallel Lines Clamp S
A: Yes,Sample orders welcomed. Low amount free samples could be provided when we have stocks.
Servo Motor Coupling Generator Aluminum Alloy Parallel Wire Clamping Flexible Shaft Coupling Price
Q2. OEM/ODM accepted?45# Steel Plum Type High Rigid Coupling With Keyway
A: Yes, Please send you new product drawings or sample to us if you have, and we can custom-made as your required. We will also provide professional advices of the products to make the design to be maximize the performance.
Servo Motor Coupling Generator Aluminum Alloy Parallel Wire Clamping Flexible Shaft Coupling Price
Q3. If you can not find the product on our website,how do you do?
A: Please send us inquiry with product pictures and drawings by email or other ways you prefer, we'll check if we could produce.Servo Motor Coupling Generator Aluminum Alloy Parallel Wire Clamping Flexible Shaft Coupling Price
Company Introduction
short for runs a major business of in the industry. Our company takes brand management as the core, technology innovation as the driving force, market demand as the guide, and scientific management as the means. We continuously improve the brand awareness and the market share of products, and promise to bring every consumer the highest quality products. We have a professional team with experienced team members, and we also introduce advanced concepts and models to guide our team to carry out research work. has many years of industry experience and strong production strength. According to different needs of customers, we are able to provide customers with excellent and efficient one-stop solutions.
If you need to buy our products, welcome to contact us!
