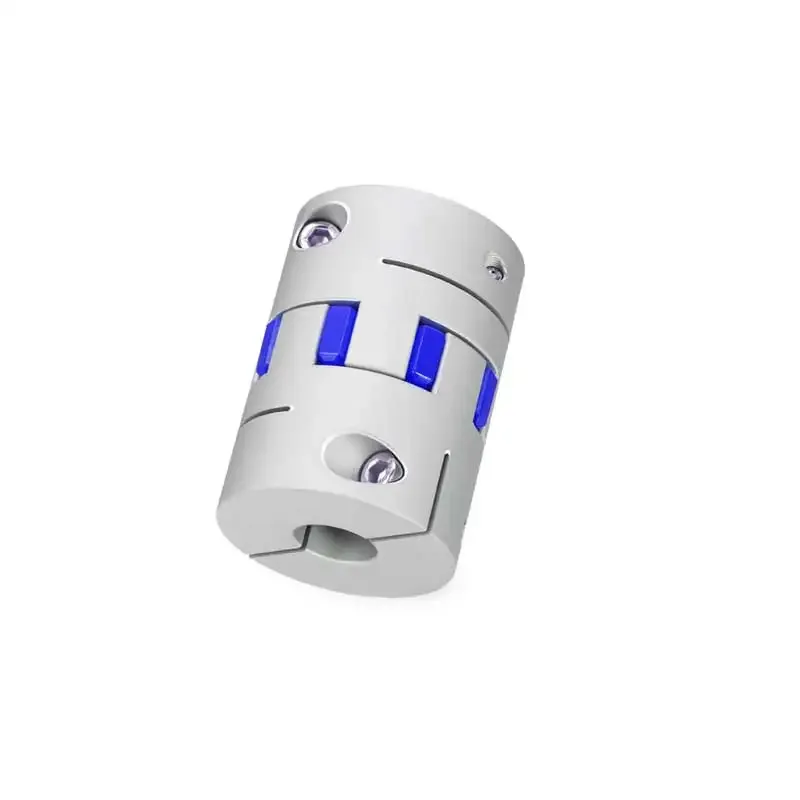

Spider Jaw Motor Coupling Flexible Rubber Camlock Shaft Coupling For Oil Pump
5.0
Shipping:
Support Sea freight
Place of Origin:
China
Payments:
L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA
Lead Time:
1-10000(pieces):30(days),>10000(pieces):To be negotiated(days)
Customization:
Customized packaging (Min. Order: 1000 sets),Customized logo (Min. Order: 1000 sets),Graphic customization (Min. Order: 1000 sets)
Brand Name:
KONLIDA
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Diameter
16mm
Features 2
Zero backlash,suitable for forward reverse
Features 1
Design for encoder,stepmotor
Body Material
Aluminum alloy
OEM & ODM
Acceptable
Surface Treatment
Oxidation
Standard or Nonstandard
Standard
Flexible or Rigid
Flexible
Structure
Universal
Customized support
OEM, ODM
Applicable Industries
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Food Shop, Printing Shops, Energy & Mining
Warranty
1 years
Length
17.4mm
Product name
Flexible Coupling 5*8
Application
Industrial Equipment
Material
Aluminium, Aluminium
Place of Origin
SUZHOU
Quick Detail
is available in a wide range of types and styles. It is functional and practical with reasonable price and quality assurance. is developed by team of professionals by using the high grade material and modern technology as per with market prevalent norms. has stable quality and superior performance. The product has great popularity in the global market thanks to its high quality and stable performance.
Product Description
Features:
● Integrated structure,the overall use of high-strength aluminum alloy material.●Elasticity compensates radialangular and axial deviations.
●Shaft and axial connection without gaps suitable for for
ward and reverse rotation.
● Commonly used in servo,stepper motor
●Clamping screw tightening method.
Flexible Shaft Coupler Stainless Steel Parallel Lines Clamp Coupling For Cnc Step Motor
Specification
Dimension:(Unit:mm)
Model Parameter | Common Bore Diameter d1,d2 | ΦD | L | L1 | L2 | F | M | Tightening Screw Torque(N.M) | ||||||||
KLD-16X17.4 | 3,4.5,6 | 16 | 17.4 | 0.55 | 1.18 | 3.0 | M2.5 | 1 | ||||||||
KLD-19X20 | 3,4,5,6,6.35,7,8 | 19 | 20 | 0.55 | 1.18 | 3.4 | M2.5 | 1 | ||||||||
KLD-24X25 | 4,5,6,6.35,7.8.9.10,11 | 24 | 25 | 0.55 | 1.49 | 3.78 | M3 | 1.5 | ||||||||
KLD-29X30 | 5,6,6.35,7,8,9,9.525,10,11,12,12.7 | 29 | 30 | 0.55 | 1.81 | 4.5 | M3 | 1.5 | ||||||||
KLD-34X35 | 8,9,9.525,10,11,12,12.7,14,15,16 | 34 | 35 | 0.8 | 2.09 | 5.1 | M3 | 1.5 | ||||||||
Specifications(Unit:mm) | ||||||||||||||||
Model Parameter | Rated Torque(N.m) | Allowable Eccentricity (mm) | Allowable Deflection angle (°) | Allowable Axial Deviation (mm) | Maximum Speed (rpm) | Static Torsional Stiffness (N· m/rad) | Moment of Inertia (N· m) | Coupling Weight (g) | ||||||||
KD-16X17.4 | 0.75 | 0.05 | 0.5 | ±0.1 | 8000 | 200 | 2.5x10-7 | 7 | ||||||||
KD-19X20 | 1.5 | 0.05 | 0.5 | ±0.1 | 8000 | 270 | 5.8x10-7 | 12 | ||||||||
KD-24X25 | 2.2 | 0.05 | 0.5 | ±0.1 | 6200 | 790 | 1.8x10-6 | 23 | ||||||||
KD-29X30 | 3 | 0.05 | 0.5 | ±0.1 | 5000 | 1400 | 5.2x10-6 | 41 | ||||||||
KD-34X35 | 4.5 | 0.05 | 0.5 | ±0.1 | 4300 | 2200 | 1.1x10-5 | 62 | ||||||||
Remarks: The above inertia moment and various technical parameters are measured from the maximum aperture as the standard. The maximum rated torque is related to the durability of the coupling itself. The larger the outer diameter, the greater the force,and the smaller the outer diameter is. higher speed. | ||||||||||||||||
Application
Packaging:Jaw Coupling D20 L25mm Coupling Stepper Motor 5mm 8mm Plum Shaped Clamp Shaft Coupler For Servo Motor
1. Commerial Packaging: PE bags,PP bags,Bubble bags,Carton box,Wooden box for safe package.
2. According to clients' requirements.Flexible Shaft Coupler Stainless Steel Parallel Lines Clamp Coupling For Cnc Step Motor
Factory
Suzhou Konlida Precision Electronic Co., Ltd.Established in 2006, the headquarter is in suzhou. KONLIDA is a specialized supplier of a full range of chains, sprockets, gears, gear racks, v belt pulley, timing pulley, V-belts, couplings, machined parts and so on.
Professional production of various process parts, can make a variety of complex process products.You can customize various products accordung to your needs.
One stop service ,source factory ,Suppprts small batch custmizatiom,No worries about delivery,Quality assurance after-sale guarantee.
