Quick Overview

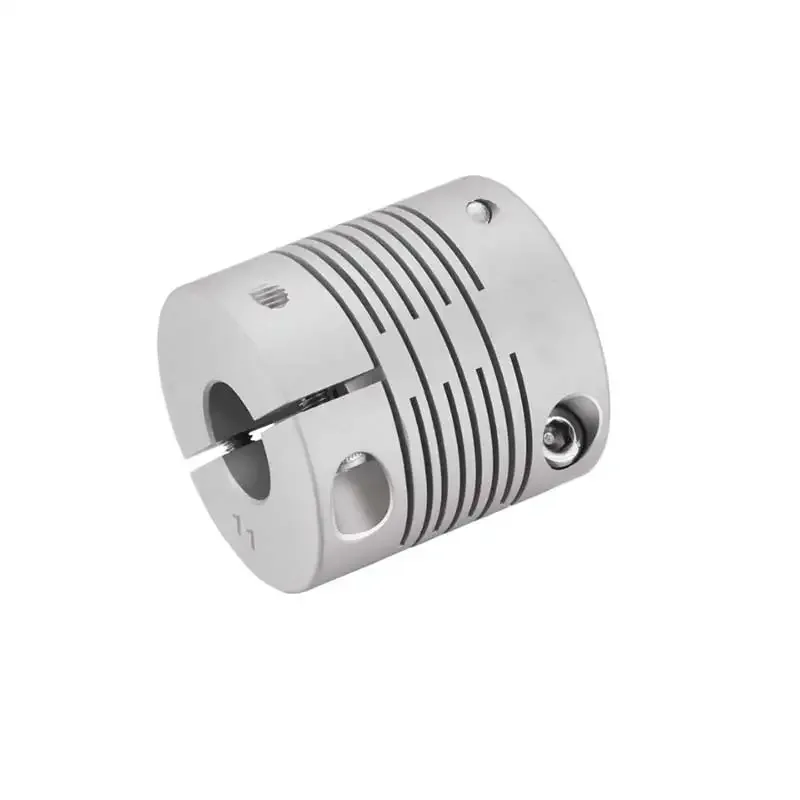

We have many kinds of designs for Coupling. Statistical quality control techniques are used in the production process to ensure consistent quality. Our Coupling can be used in multiple areas of multiple industries. Due to its remarkable advantages in the market, the product enjoys a great market prospect.
Model Parameter | Common Bore Diameter d1,d2 | ΦD | L | L1 | L2 | F | M | Tightening Screw Torque(N.M) | ||||||||
KLD-16X17.4 | 3,4.5,6 | 16 | 17.4 | 0.55 | 1.18 | 3.0 | M2.5 | 1 | ||||||||
KLD-19X20 | 3,4,5,6,6.35,7,8 | 19 | 20 | 0.55 | 1.18 | 3.4 | M2.5 | 1 | ||||||||
KLD-24X25 | 4,5,6,6.35,7.8.9.10,11 | 24 | 25 | 0.55 | 1.49 | 3.78 | M3 | 1.5 | ||||||||
KLD-29X30 | 5,6,6.35,7,8,9,9.525,10,11,12,12.7 | 29 | 30 | 0.55 | 1.81 | 4.5 | M3 | 1.5 | ||||||||
KLD-34X35 | 8,9,9.525,10,11,12,12.7,14,15,16 | 34 | 35 | 0.8 | 2.09 | 5.1 | M3 | 1.5 | ||||||||
Specifications(Unit:mm) |
Model Parameter | Rated Torque(N.m) | Allowable Eccentricity (mm) | Allowable Deflection angle (°) | Allowable Axial Deviation (mm) | Maximum Speed (rpm) | Static Torsional Stiffness (N· m/rad) | Moment of Inertia (N· m) | Coupling Weight (g) | ||||||||
KD-16X17.4 | 0.75 | 0.05 | 0.5 | ±0.1 | 8000 | 200 | 2.5x10-7 | 7 | ||||||||
KD-19X20 | 1.5 | 0.05 | 0.5 | ±0.1 | 8000 | 270 | 5.8x10-7 | 12 | ||||||||
KD-24X25 | 2.2 | 0.05 | 0.5 | ±0.1 | 6200 | 790 | 1.8x10-6 | 23 | ||||||||
KD-29X30 | 3 | 0.05 | 0.5 | ±0.1 | 5000 | 1400 | 5.2x10-6 | 41 | ||||||||
KD-34X35 | 4.5 | 0.05 | 0.5 | ±0.1 | 4300 | 2200 | 1.1x10-5 | 62 | ||||||||
Remarks: The above inertia moment and various technical parameters are measured from the maximum aperture as the standard. The maximum rated torque is related to the durability of the coupling itself. The larger the outer diameter, the greater the force,and the smaller the outer diameter is. higher speed. |
Company Advantages
is a professional and reliable maker of Coupling. regards Coupling technology as our core competitiveness. We strive to create an inclusive work environment that fosters diversity; treat one another equally, with dignity and respect; be open and direct; promote a challenging work environment that develops our workforce.
Welcome all customers to come for cooperation.
