    Diameter
    16mm
    Features 2
    Zero backlash,suitable for forward reverse
    Features 1
    Design for encoder,stepmotor
    Body Material
    Aluminum alloy
    OEM & ODM
    Acceptable
    Surface Treatment
    Oxidation
    Standard or Nonstandard
    Standard
    Flexible or Rigid
    Flexible
    Structure
    Universal
    Customized support
    OEM, ODM
    Applicable Industries
    Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Food Shop, Printing Shops, Energy & Mining
    Warranty
    1 years
    Length
    17.4mm
    Product name
    Flexible Coupling 5*8
    Application
    Industrial Equipment
    Material
    Aluminium, Aluminium
    Place of Origin
    SUZHOU

    Product Overview


    Made of well-selected materials and manufactured based on the lean production method, Parallel Line Top Wire Coupling presents the finest workmanship in the industry. Many customers are greatly impressed by its optimal performance and superior quality. manufacturing base has technology, testing, quality supervision, logistics and other departments.


    Stainless Steel Parallel Lines Top Clamp Flexible Shaft Coupling Series Encoder Stepmotor Coupling 2mm~6mm 8
    Stainless Steel Parallel Lines Top Clamp Flexible Shaft Coupling Series Encoder Stepmotor Coupling 2mm~6mm 9
    Product Description
    Stainless Steel Parallel Lines Top Clamp Flexible Shaft Coupling Series Encoder Stepmotor Coupling 2mm~6mm 10

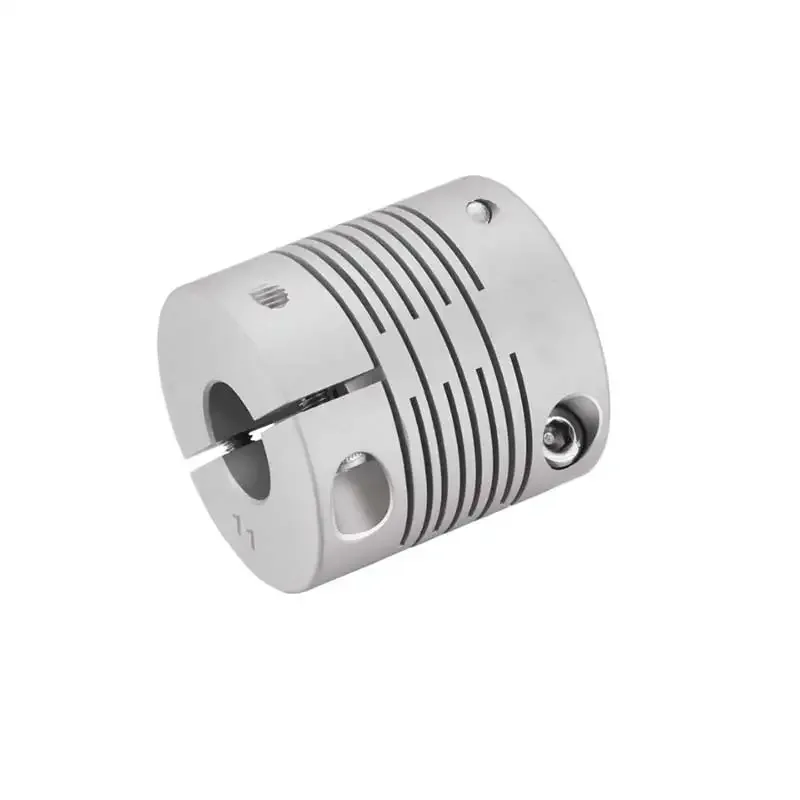

    Features:
     Integrated structure, the overall use of high-strength alu minum alloy material .
    ● Elasticity compensates radial,angular and axial deviations.
    ● Shaft and axial connection without gaps suitable for for ward and reverse rotation.
    Commonly used in encodersstepper motors
    Tightening method of positioning screw.
    Stainless Steel Parallel Lines Top Clamp Flexible Shaft Coupling Series Encoder Stepmotor Coupling 2mm~6mm

    Stainless Steel Parallel Lines Top Clamp Flexible Shaft Coupling Series Encoder Stepmotor Coupling 2mm~6mm 11
    Stainless Steel Parallel Lines Top Clamp Flexible Shaft Coupling Series Encoder Stepmotor Coupling 2mm~6mm 12
    Stainless Steel Parallel Lines Top Clamp Flexible Shaft Coupling Series Encoder Stepmotor Coupling 2mm~6mm 13
    Specification
    Dimension:(Unit:mm)
    Model Parameter
    Common Bore Diameter d1,d2
    ΦD
    L
    L1
    L2
    F
    M
    Tightening Screw Torque  (N.M)
    KLD-16X17.4
    3,4.5,6,
    16
    17.4
    0.55
    1.18
    3
    M3
    0.7
    KLD-19X20
    3,4,5,6,6.35,7,8
    19
    20
    0.55
    1.18
    2.3
    M3
    0.7
    KLD-24X25
    4,5,6,6.35,7.8.9.10,11
    24
    25
    0.55
    1.49
    4.25
    M4
    1.7
    KLD-29X30
    5,6,6.35,7,8,9,9.525,10,11,12,12.7
    29
    30
    0.55
    1.81
    5.1
    M5
    4
    KLD-34X35
    8,9,9.525,10,11,12,12.7,14,15,16.
    34
    35
    0.8
    2.09
    5
    M5
    4
    Processed with H7 standard tolerance. The inner diameter size marked in the table is for reference only. The inner diameter required by the customer, please contact the salesman for detailed parameters.
    Specifications(Unit:mm)
    Model Parameter
    Rated Torque(N.m)
    Allowable eccentricity (mm)
    Allowable Deflection Angle (°)
    Allowable Axial Deviation (mm)
    Maximum Speed (rpm)
    Static Torsional Stiffness (N· m/rad)
    Moment of Inertia (N· m)
    Coupling Weight (g)
    KLD-16X17.4
    0.75
    0.05
    0.5
    ±0.1
    24000
    200
    2.8x10-7
    7
    KLD-19X20
    1.5
    0.05
    0.5
    ±0.1
    20000
    270
    6.2x10-7
    10
    KLD-24X25
    2.2
    0.05
    0.5
    ±0.1
    16000
    790
    2.0x10-6
    22
    KLD-29X30
    3
    0.05
    0.5
    ±0.1
    13000
    1400
    5.2x10-6
    40
    KLD-34X35
    4.5
    0.05
    0.5
    ±0.1
    11000
    2200
    1.1x10-5
    64
    Remarks: The above inertia moment and various technical parameters are measured from the maximum aperture as the standard. The maximum rated torque is related to the durability of the coupling itself. The larger the outer diameter, the greater the force,and the smaller the outer diameter is. higher speed.
