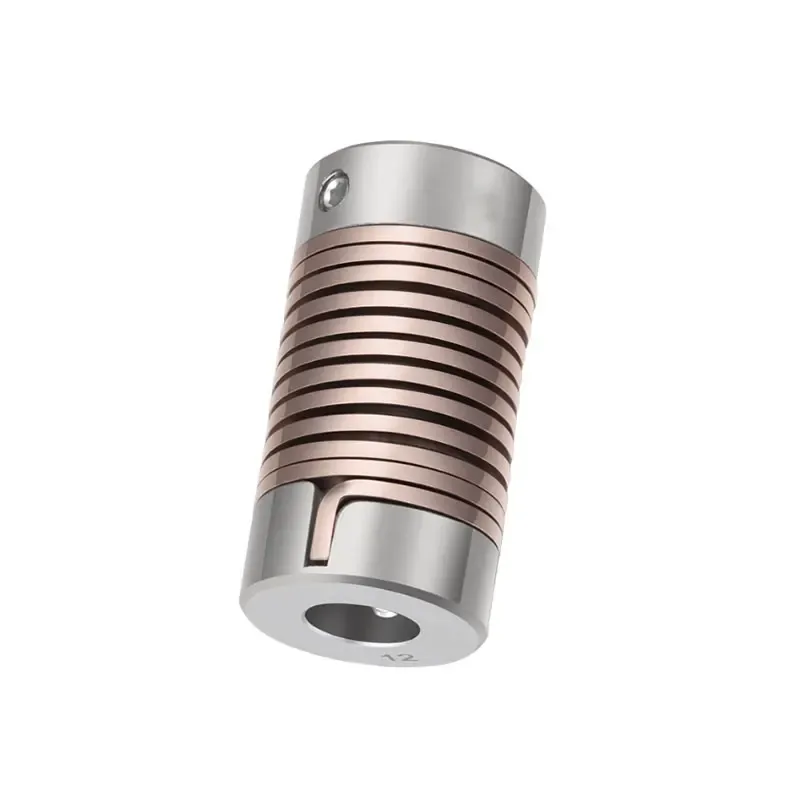

Stainless Steel Spring 6-6mm Type Bellows Coupling Elastic Coupling For Rotary Encoder
5.0
Samples:
$21.01/piece | Min. order : 1 piece
Shipping:
Support Sea freight
Place of Origin:
China
Payments:
L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA
Lead Time:
1-10000(pieces):13(days),>10000(pieces):To be negotiated(days)
Customization:
Customized packaging (Min. Order: 1000 sets),Customized logo (Min. Order: 1000 sets),Graphic customization (Min. Order: 1000 sets)
Brand Name:
KONLIDA
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Features 2
Good softness,not easy to break
Features 1
Design for encoder
Body Material
Aluminum
OEM & ODM
Acceptable
Surface Treatment
Oxidation
Standard or Nonstandard
Standard
Flexible or Rigid
Flexible
Structure
Universal, Encoder
Customized support
OEM, ODM
Applicable Industries
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Food Shop, Printing Shops, Energy & Mining
Warranty
1 years
Color
Custom Requirement
Product name
Flexible Coupling 5*8
Material
Aluminium, Plastic
Place of Origin
SUZHOU
Quick Detail
focuses on the production of green and organic vegetables. The production is strictly complied with relevant regulations for the planting of organic agricultural produce and is managed with unified standards. are safe without fertilizers and pesticides. They are organic products that can be eaten without worry. keeps close eyes on customers' needs and pays great attention on design of The product undergoes strict QC procedures including process control, random inspection, and routine inspection. These inspections prove to be helpful to the quality of the product. The product enjoys a good reputation for the characteristics of a wide range of applications.
Product Description
Features:
● Bushings made of Zinc alloy● Elastomer made of Spring steel
● Simple structure,flexible, low inertia,allowing angular
misalignments
● The installation is easy, the spring steel is more efficiently
absorbed parallelangular misalignments and shaft end-play
● Applicable to micro-motorencoder
● Setscrew type.
Stainless Steel Spring Type Bellows Coupling Elastic Coupling For Rotary Encoder 6-6mm
Specification
Dimension:(Unit:mm)
Model Parameter | Common Bore Diameter d1,d2 | ΦD | L | LF | F | M | Tightening Screw Torque (N.M) | |||||||
KLD-16X25 | 5,6,6.35,7,8,9,10 | 16 | 25 | 11.45 | 4.0 | M3 | 0.7 | |||||||
KLD-16X35 | 5,6,6.35,7,8,9,10 | 16 | 35 | 12.5 | 3.8 | M4 | 1.7 | |||||||
KLD-26X50 | 6,6.35,7,8,9,10,11,12,12.7,14 | 26 | 50 | 17 | 5.0 | M5 | 4 | |||||||
Processed with H7 standard tolerance. The inner diameter size marked in the table is for reference only. The inner diameter required by the customer, please contact the salesman for detailed parameters. | ||||||||||||||
Specifications(Unit:mm)
Model Parameter | Rated Torque(N.m) | Allowable Eccentricity (mm) | Allowable Deflection Angle (°) | Allowable Axial Deviation (mm) | Maximum Speed (rpm) | Moment of Inertia (N· m) | Coupling Weight (g) | |||||||
KLD-16X25 | 0.5 | 1 | 8 | ±1.0 | 3000 | 1.02x10-6 | 30 | |||||||
KLD-16X35 | 0.5 | 1 | 8 | ±1.0 | 3000 | 1.02x10-6 | 70 | |||||||
KLD-26X50 | 1.5 | 3 | 8 | ±1.0 | 3000 | 1.15x10-5 | 130 | |||||||
Processed with H7 standard tolerance. The inner diameter size marked in the table is for reference only. The inner diameter required by the customer, please contact the salesman for detailed parameters. | ||||||||||||||
Application
Packaging:Jaw Coupling D20 L25mm Coupling Stepper Motor 5mm 8mm Plum Shaped Clamp Shaft Coupler For Servo Motor
1. Commerial Packaging: PE bags,PP bags,Bubble bags,Carton box,Wooden box for safe package.
2. According to clients' requirementsStainless Steel Spring Type Bellows Coupling Elastic Coupling For Rotary Encoder 6-6mm
Factory
Suzhou Konlida Precision Electronic Co., Ltd.Established in 2006, the headquarter is in suzhou. KONLIDA is a specialized supplier of a full range of chains, sprockets, gears, gear racks, v belt pulley, timing pulley, V-belts, couplings, machined parts and so on.
Professional production of various process parts, can make a variety of complex process products.You can customize various products accordung to your needs.
One stop service ,source factory ,Suppprts small batch custmizatiom,No worries about delivery,Quality assurance after-sale guarantee.
Our Team
FAQ
Q1. Can I get 1 or more samples?Coupler Zinc Alloy Flexible Shaft Couplings For Micro Motor And Encoder Coupling
A: Yes,Sample orders welcomed. Low amount free samples could be provided when we have stocks.
Stainless Steel Spring Type Bellows Coupling Elastic Coupling For Rotary Encoder 6-6mm
Q2. OEM/ODM accepted?45# Steel Plum Type High Rigid Coupling With Keyway
A: Yes, Please send you new product drawings or sample to us if you have, and we can custom-made as your required. We will also provide professional advices of the products to make the design to be maximize the performance.
Stainless Steel Spring Type Bellows Coupling Elastic Coupling For Rotary Encoder 6-6mm
Q3. If you can not find the product on our website,how do you do?
A: Please send us inquiry with product pictures and drawings by email or other ways you prefer, we'll check if we could produce.Stainless Steel Spring Type Bellows Coupling Elastic Coupling For Rotary Encoder 6-6mm
