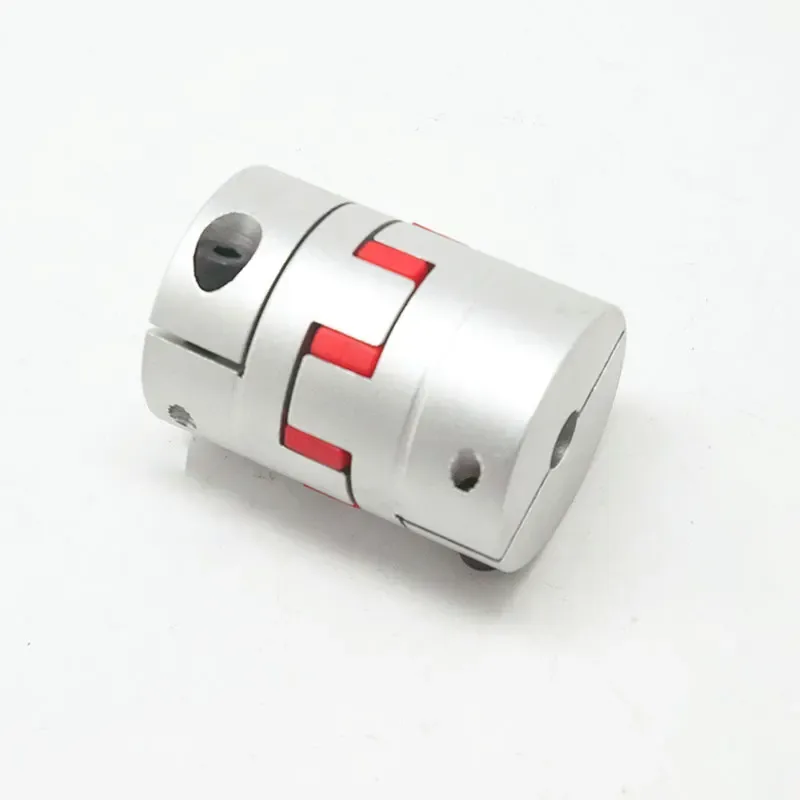

Standard Aluminum Alloy Flexible Clamp Series Diameter 25mm Length 39mm Shaft Oldham Coupling 1

Standard Aluminum Alloy Flexible Clamp Series Diameter 25mm Length 39mm Shaft Oldham Coupling 2

Standard Aluminum Alloy Flexible Clamp Series Diameter 25mm Length 39mm Shaft Oldham Coupling 3

Standard Aluminum Alloy Flexible Clamp Series Diameter 25mm Length 39mm Shaft Oldham Coupling 4

Standard Aluminum Alloy Flexible Clamp Series Diameter 25mm Length 39mm Shaft Oldham Coupling 5

Standard Aluminum Alloy Flexible Clamp Series Diameter 25mm Length 39mm Shaft Oldham Coupling 6

Standard Aluminum Alloy Flexible Clamp Series Diameter 25mm Length 39mm Shaft Oldham Coupling 7

Standard Aluminum Alloy Flexible Clamp Series Diameter 25mm Length 39mm Shaft Oldham Coupling

Model Number:

CNC Shaft couples flexible

Shipping:

Support Sea freight

Place of Origin:

China

Payments:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA

Lead Time:

1-10000(pieces):30(days),>10000(pieces):To be negotiated(days)

Customization:

Customized packaging (Min. Order: 1000 sets),Customized logo (Min. Order: 1000 sets),Graphic customization (Min. Order: 1000 sets)

Brand Name:

KONLIDA

Inquiry

Write a Review

Features 2

Zero backlash,easy installation

Features 1

Bushings made of High-strength aluminum alloy

Body Material

Aluminum

OEM & ODM

Acceptable

Surface Treatment

Oxidation

Standard or Nonstandard

Standard

Flexible or Rigid

Flexible

Structure

Universal, Oldham, Jaw/Spider

Customized support

OEM, ODM

Applicable Industries

Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Food Shop, Printing Shops, Energy & Mining

Warranty

1 years

Color

As photo

Product name

Oldham Coupler

Material

Aluminium, Aluminium

Place of Origin

SUZHOU

Product Overview

The production steps of Aluminum Coupling are minimized. Inspection of this product follows the standards prescribed by customers. Aluminum Coupling can be used in multiple industries and fields. has great industrial chain competitiveness and brand influence.

Standard Aluminum Alloy Flexible Clamp Series Diameter 25mm Length 39mm Shaft Oldham Coupling 8

Standard Aluminum Alloy Flexible Clamp Series Diameter 25mm Length 39mm Shaft Oldham Coupling 9

Product Description

Standard Aluminum Alloy Flexible Clamp Series Diameter 25mm Length 39mm Shaft Oldham Coupling 10

Features:

● The shaft sleeve is made of high-strength aluminum alloy.

● Colloidal material adopts imported PA66,which has good wear. resistanceCorrosion resistance and electrical insulation.

● Sliding design compensates radial and angular deviation more effectively .

● Removable design for easy installation.

● Clamping screw tightening method.

Standard Aluminum Alloy Flexible Clamp Series Diameter 25mm Length 39mm Shaft Oldham Coupling 11

Standard Aluminum Alloy Flexible Clamp Series Diameter 25mm Length 39mm Shaft Oldham Coupling 12

Standard Aluminum Alloy Flexible Clamp Series Diameter 25mm Length 39mm Shaft Oldham Coupling 13

Specification

Dimension:(Unit:mm)

Model Parameter	Common Bore Diameter d1,d2	ΦD	L	LF	LP	F	M	Tightening Screw Torque (N.M)
KLD-16X29	4,5.6,6.35,	16	29	12.5	12	3	M2.5	0.8
KLD-20X33	5,6,6.35,7,8	20	33	14.1	12.7	3.8	M2.5	0.8
KLD-25X39	5.6,6.35,8,9,9.525,10,11,12	25	39	16.9	17.7	3.9	M3	1.2
KLD-32X45	5,6.8,9,9.525,10,11,12,12.7,14,15,16	32	45	20	20	4.5	M4	2.5
KLD-40X50	8,9,9.525,10,11,12,14,15,16,17,18,19	40	50	23	20.3	5.5	M5	5
KLD-44X46	8,9,9.525,10,11,12,,14,15,16,17,18,19,20,22,	44	46	20.7	18.4	7	M5	5
KLD-50X53	10,11,12.7,14,15,16,17,18,19,20,22,24	50	53	24.2	22.35	7.5	M6	8
KLD-50X58	10,11,12.7,14,15,16,17,18,19,20,22,24	50	58	26.5	22.35	6.3	M6	8
KLD-55X57	10,11,12.7,14,15,16,17,18,19,20,22,24,25,28	55	57	26.2	25.8	6.3	M6	8
KLD-63X71	14,15,16,17,18,19,20,22,24,25,28,30,32	63	71	32.8	26.2	7.8	M8	20
KLD-70X77	14,15,16,17,18,19,20,22,24,25,28,30,32,35,38	70	77	32	25	7.7	M8	20
Processed with H7 standard tolerance. The inner diameter size marked in the table is for reference only. The inner diameter required by the customer, please contact the salesman for detailed parameters.

Specifications(Unit:mm)

Model Parameter	Rated Torque(N.m)	Allowable Eccentricity (mm)	Allowable Deflection Angle (°)	Allowable Axial Deviation (mm)	Maximum Speed (rpm)	Static Torsional Stiffness (N· m/rad)	Moment of Inertia (N· m)	Coupling Weight (g)
KLD-16X29	0.7	0.8	3	±0.2	9000	30	3.5x10-7	12
KLD-20X33	1.2	1.2	3	±0.2	7000	58	1.5x10-6	19
KLD-25X39	2	1.6	3	±0.2	6000	130	3.2x10-6	35
KLD-32X45	4.5	2	3	±0.2	4800	270	1.5x10-5	67
KLD-40X50	9	2.4	3	±0.2	3600	520	4.2x10-5	114
KLD-44X46	12	2.5	3	±0.2	3500	800	4.5x10-5	140
KLD-50X53	19	2.6	3	±0.2	3000	800	1.0x10-4	190
KLD-50X58	19	3	3	±0.2	3000	800	1.1x10-4	215
KLD-55X57	25	3.2	3	±0.2	3000	900	1.3x10-5	260
KLD-63X71	33	3	3	±0.2	1200	1200	3.5x10-4	455
KLD-70X77	56	3.5	3	±0.2	1260	1260	4.1x10-4	520
Remarks: The above inertia moment and various technical parameters are measured from the maximum aperture as the standard. The maximum rated torque is related to the durability of the coupling itself. The larger the outer diameter, the greater the force,and the smaller the outer diameter is. higher speed.
