Product details of the emi shielding companies
Product Specification
Type: Microfiber Fabric
Weight: 70g, 80-150g/㎡
Material: Polyester, Polyester fiber+copper-Nickel
Yarn Count: 40*50D
Product Information
The materials of emi shielding companies is safe, do no harm to human health. emi shielding companies produced by the factory has high technological content, reasonable structure and superior performance. When there are options, will thoroughly describe each available alternative for customers.
|

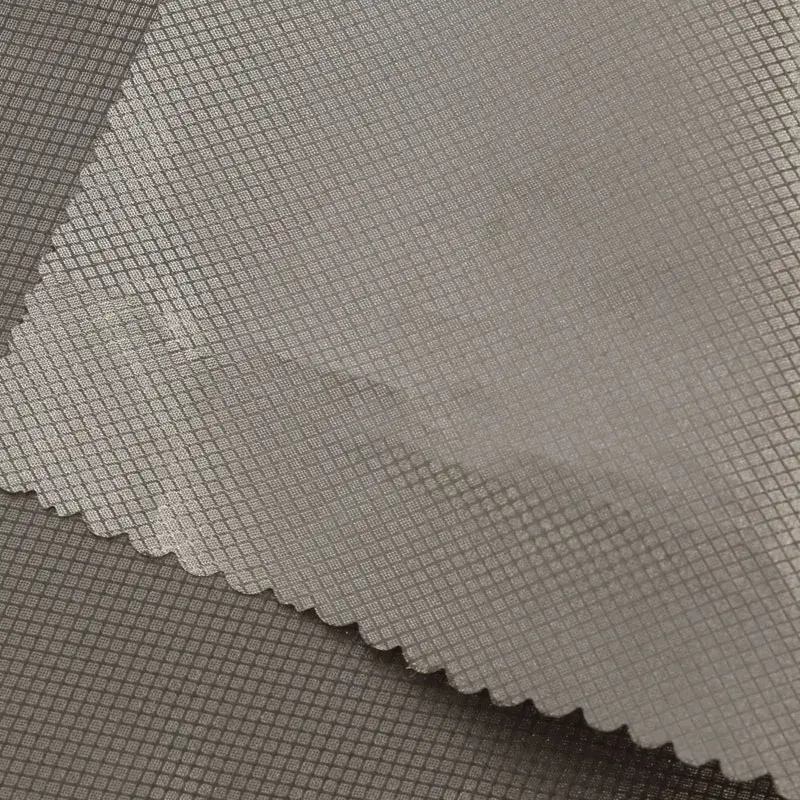

Technical Specification of Copper fabric
|
|
|
|
Component
|
Polyester fiber + Copper-Nickel
|
|
|
Color
|
Silver grey, Slilver, Black
|
|
|
Thickness
|
0.08 mm High Quality Anti Magnetic Faraday Shield Radiation Proof Heat
|
|
|
Width
|
1080 mm High Quality Anti Magnetic Faraday Shield Radiation Proof Heat
|
|
|
Density
|
80g±10/m2
|
|
|
Shielding effectiveness
|
≥ 60 (Min) in 10MHz - 3GHz
|
|
|
Salt spray test
|
<0.5Ω/SQ(5%, 48H, 35℃)
|
|
|
Surface resistance
|
≤0.05Ω/SQHigh Quality Anti Magnetic Faraday Shield Radiation Proof Heat
|
|
|
Type
|
Diamond shape, Plain shape, Grid shape, Single coating black, Double coating black
|
|
|
Techlonogy
|
Vaccum plating
|
|
|
Specific use
|
Industry, Tents, Bags, Meternity clothes, Curtains, Special uniforms
|
|
|
Function
|
Anti static, Anti radiation, Antibacterial
|
|

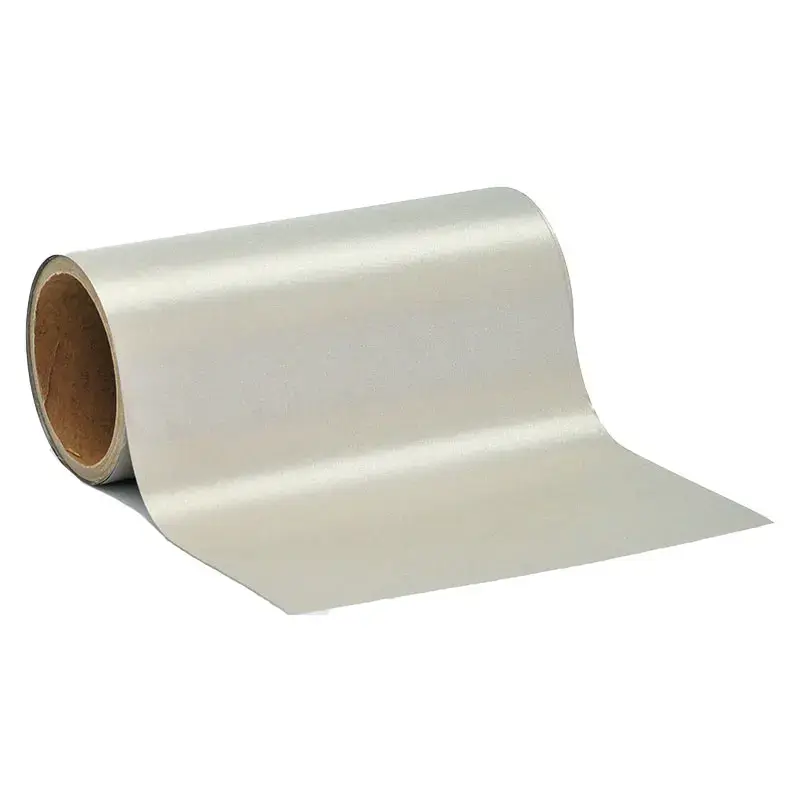

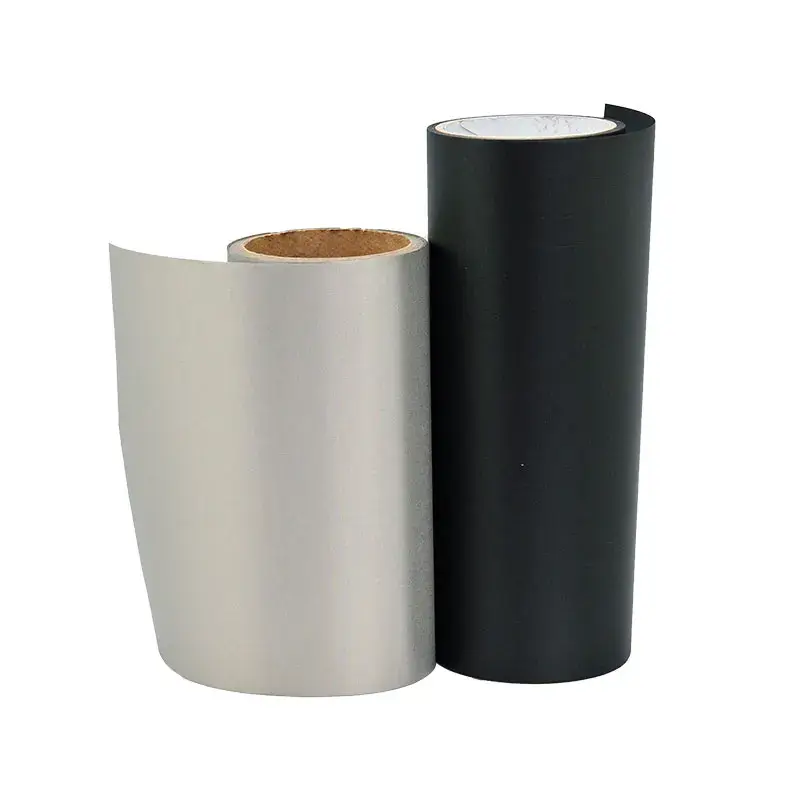

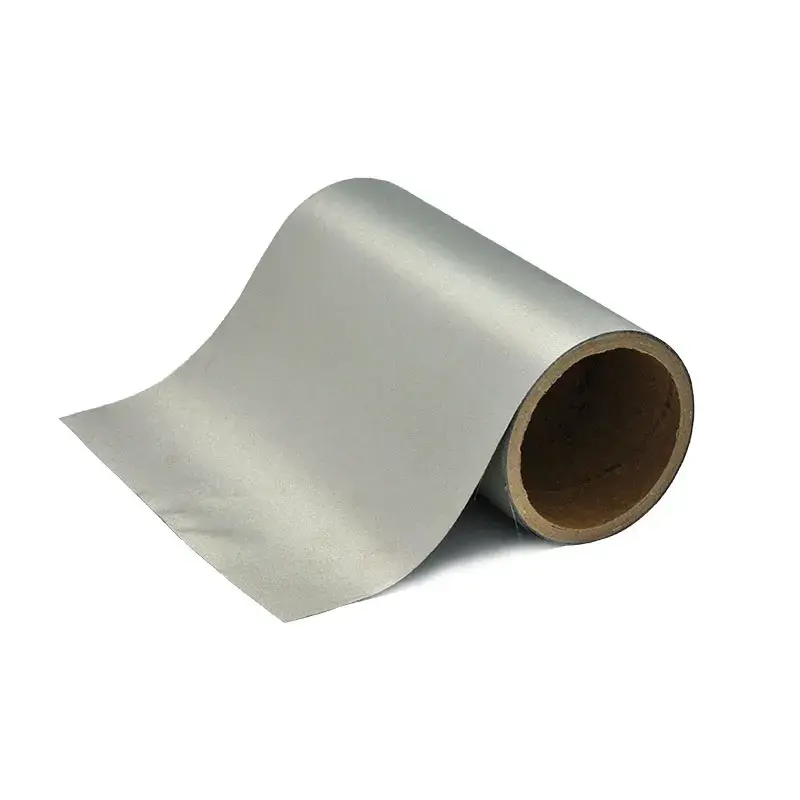

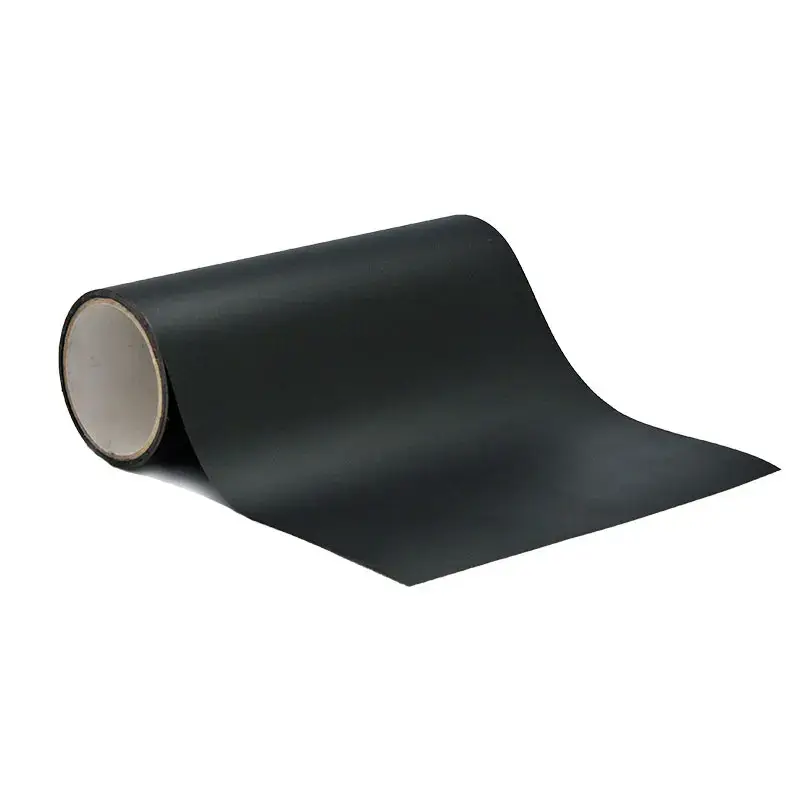

Conductive Cloth
Conductive cloth is made of fiber cloth (commonly used polyester fiber cloth) as the basematerial,and electroplated metal coating is applied after pre-treatment to make it have metal characteristics and become conductive fiber cloth, which can be divided into: nickel-plated conductive cloth,gold-plated conductive cloth, charcoal-plated conductive cloth and aluminum foil fiber composite cloth.
1. Excellent dust removal effect, with anti-static function.
2.excellent anti-static performance, permanent, resistant to washing.
3.Not easy to cause chemical reaction.
4.prevent the damage and aging of electronic components,prevent static electricity caused by the combustion,explosion and other dangers.
Packing Details:80cm*23cm*23cm ，142cm*23cm*23cm，other customized size
