Applicable to the Crowd
Women, Men, GIRLS, BOYS, Infant/Baby, None
Weight
70g, 150cm
Supply Type
Make-to-Order
Width
1100mm,1300mm,650mm
Type
Microfiber Fabric

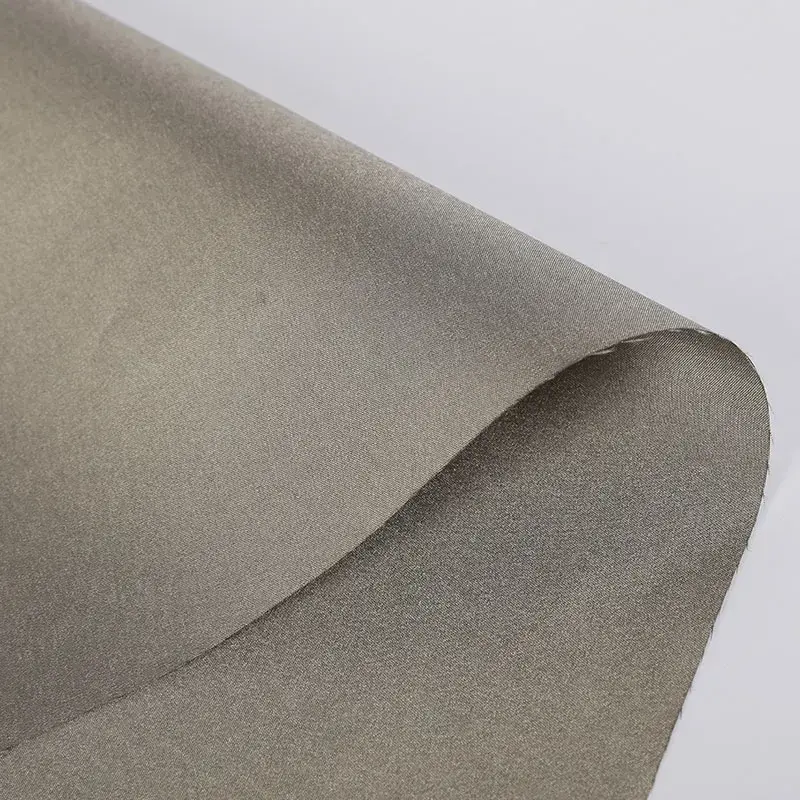

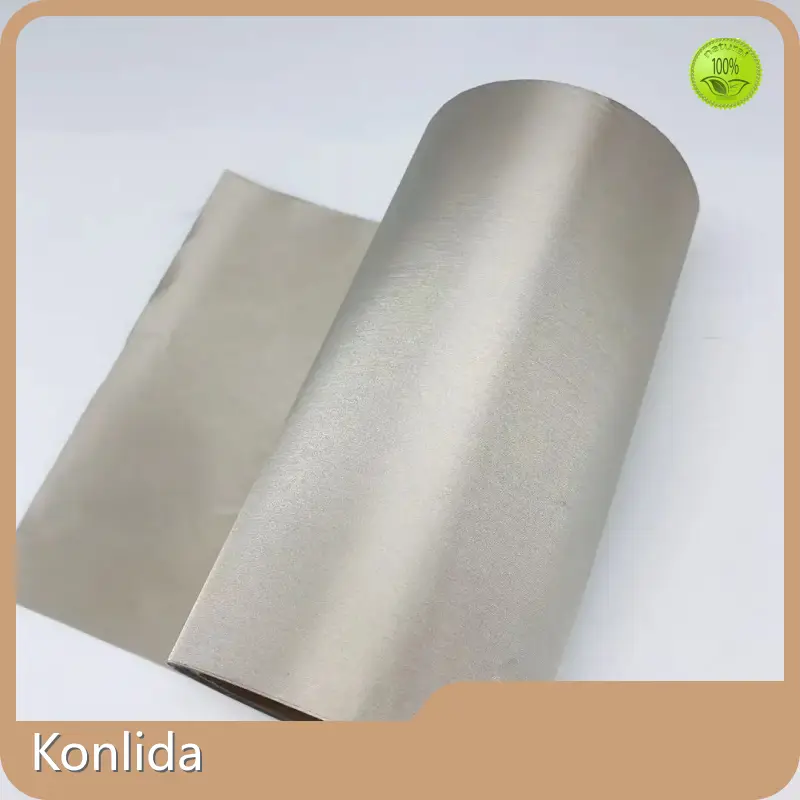

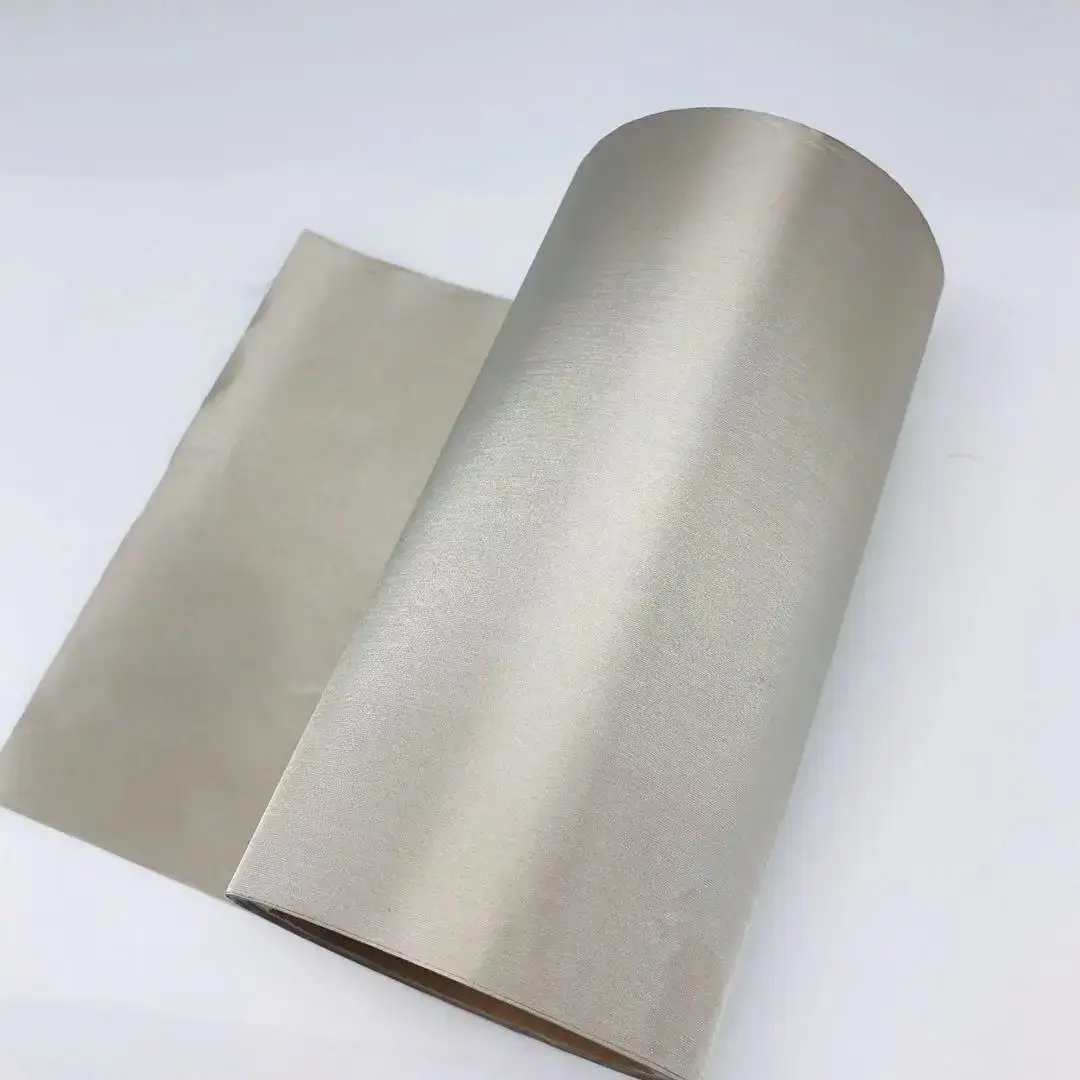

Silver fiber tricot EMF protection shielding anti radiation conductive fabric. 100% silver coated tricot fabric.Its shielding efficiency is 99.9999% (>60DB) or more, which can effectively shield mobile phone signals, WIFI, 4G, and electromagnetic waves emitted by signal towers. It has antibacterial, conductive,EMI,EMF,RFID,and anti-radiation functions. It can be applied to EMF protection bellyband(belt) , EMF shielding maternity dress, EMF curtains,anti-radiation garments lining,conductive smart wear,etc. If you are worried that the fabric will oxidize and discolor, and the conductivity is reduced, we also have antioxidant technology to solve the problem for you.
High Quality Anti Magnetic Faraday Shield Radiation Proof Heat
                                           Technical Specification of Copper fabric
Component
Polyester fiber + Copper-Nickel
Color
Silver grey, Slilver, Black
Thickness
0.08 mm High Quality Anti Magnetic Faraday Shield Radiation Proof Heat
Width
1080 mm High Quality Anti Magnetic Faraday Shield Radiation Proof Heat
Density
80g±10/m2
Shielding effectiveness
≥ 60 (Min) in 10MHz - 3GHz
Salt spray test
<0.5Ω/SQ(5%, 48H, 35℃)
Surface resistance
≤0.05Ω/SQHigh Quality Anti Magnetic Faraday Shield Radiation Proof Heat
Type

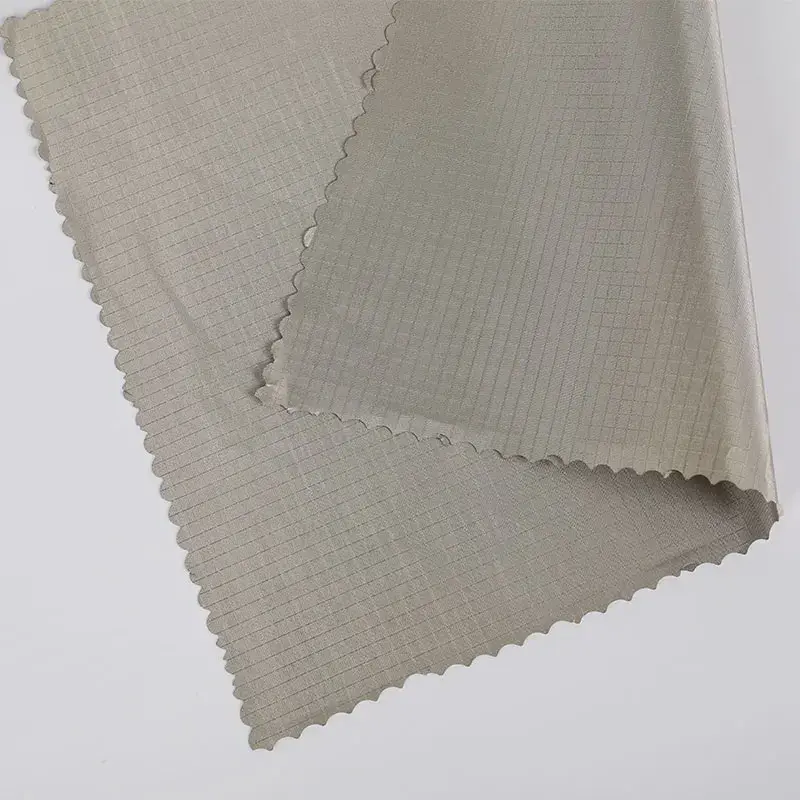

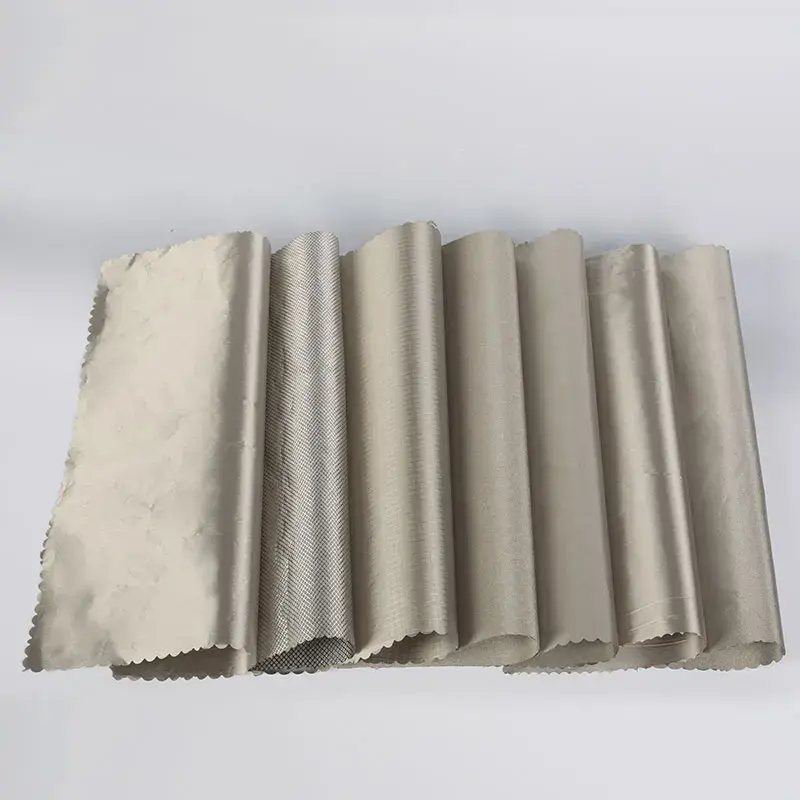

Diamond shape, Plain shape, Grid shape, Single coating black, Double coating black
Techlonogy
Vaccum plating
Specific use
Industry, Tents, Bags, Meternity clothes, Curtains, Special uniforms
Function
Anti static, Anti radiation, Antibacterial
Emi Shielding Sheet 1100mm - - 8
Product Description
Emi Shielding Sheet 1100mm - - 9

  • Conductive Cloth

Conductive cloth is made of fiber cloth (commonly used polyester fiber cloth) as the basematerial,and electroplated metal coating is applied after pre-treatment to make it have metal characteristics and become conductive fiber cloth, which can be divided into: nickel-plated conductive cloth,gold-plated conductive cloth, charcoal-plated conductive cloth and aluminum foil fiber composite cloth.

Functions
Emi Shielding Sheet 1100mm - - 10
Emi Shielding Sheet 1100mm - - 11

1. Excellent dust removal effect, with anti-static function.

2.excellent anti-static performance, permanent, resistant to washing.

3.Not easy to cause chemical reaction.

4.prevent the damage and aging of electronic components,prevent static electricity caused by the combustion,explosion and other dangers.

Emi Shielding Sheet 1100mm - - 12
Related products
Packaging&Delivery

Packing Details:80cm*23cm*23cm ,142cm*23cm*23cm,other customized size

Emi Shielding Sheet 1100mm - - 13
Different specifications and sizes are packed in different boxes
Company Introduction
Emi Shielding Sheet 1100mm - - 14

Suzhou Konlida Precision Electronic Co.,Ltd.
Our company was established in 2006 with a total investment of 110 million yuan and a plant area of more than 12,000 square meters. We can provide the design and manufacturing of high quality EMC/Die-cutting/thermal control product and solution.We have an excellent sales team to provide you with great customer service.
1. We have passed ISO9001/ISO13485 / AS9100 and TS16949, and we will continue to improve our-selve to meet our customer needs.
2.One-Stop service, can process customized products according to needs

3.In addition, we also distribute other well-known brand such as 3M
4.Our products are widely used in electronic industry, communication industry, construction industry, automotive industry, solar energy industry, water purification industry, aerospace industry, and medical industry.

Factory
Emi Shielding Sheet 1100mm - - 15
Emi Shielding Sheet 1100mm - - 16
Emi Shielding Sheet 1100mm - - 17
Certifications
Emi Shielding Sheet 1100mm - - 18
Emi Shielding Sheet 1100mm - - 19
FAQ
Emi Shielding Sheet 1100mm - - 20

1. Focus on EMC/Die-cutting/thermal control product manufacturing 15 years
15 years experience in producing EMC/Die-cutting/thermal control product 2. One-stop solution
Factory has professional technic and production team, service can be provided from design to end products. 3. Reliable capacity and quality Equiped with world advanced computer driving production lines. Whole set of pure water processor line featured with RO anti-saturation and advanced testing devices. ISO9001 certificated, RoHs and SGS test reports can be provided as your request.


Company Advantages

· Whatever you need pattern designed by or your own pattern, it will be no problem.

· The high quality of the product has been approved by many international certifications.

· Due to the above advantages, the product has a broader and wider market.


Company Features

· is famous as a company which centers on producing emi shielding sheet.

· We specialize in long term relationships that allow customers to be the most productive and successful organization they can be. Till now, there are a number of notable companies that we have had and continue to have a productive relationship with.

· The strong aim of would be to function as future global emi shielding sheet supplier. Check it!


Application of the Product

The emi shielding sheet produced by our company is widely used.

We have a professional team and can provide customers with the most appropriate solutions to help customers achieve their goals quickly and effectively.
